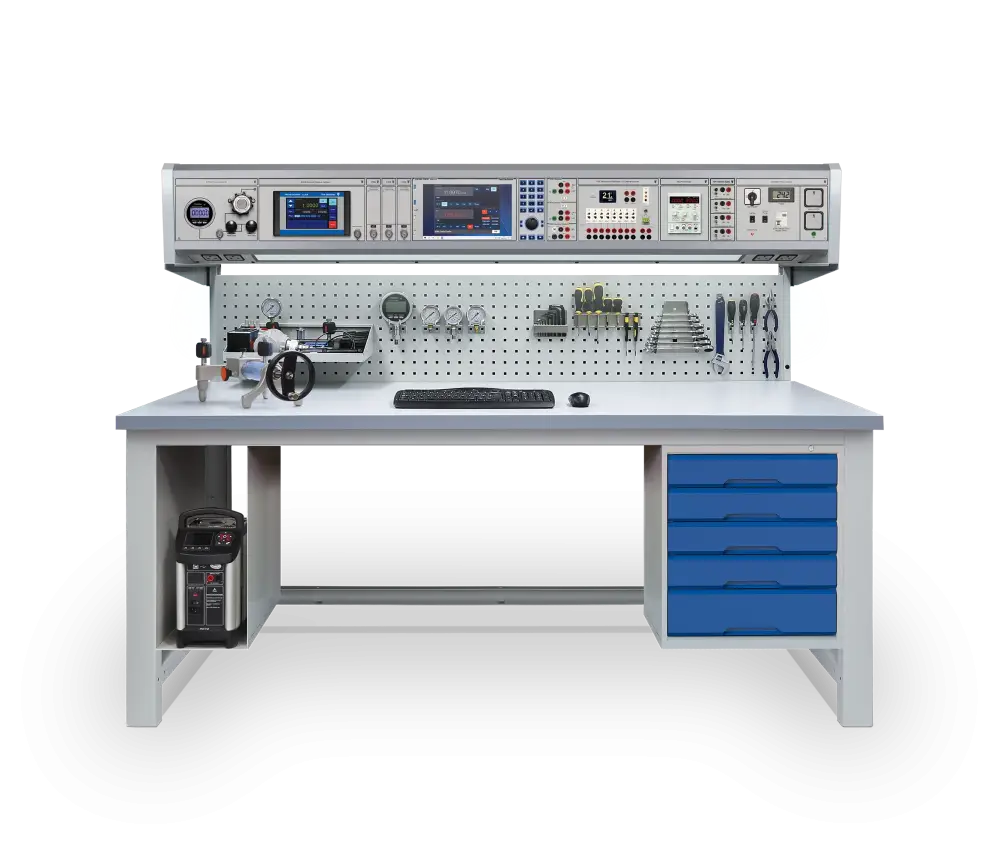

CBP-PROC1B Process Calibration Bench

New range of CalBench Packages launched – View here

The CBP-PROC1B CalBench is a comprehensive pressure and temperature calibration bench based on the popular CBP-PROC1 package. It provides a wealth of functions with wide range coverage making it suitable for instrument workshops that require a single workstation for calibration of plant devices and instruments.

The heart of the system is the 8060+ module that enables automated calibration and communication. The calibrator section features source, simulation and measure capabilities for process signals, HART communication and 24 V loop power. Also included is an integral 6.5 digit multimeter for additional measurement applications.

The PC control centre section has 12.1" touch screen display and runs the manual control applications for the process calibrator and multimeter. EasyCal software comes pre-loaded on the system and enables automated calibration and test management. It communicates with pressure modules and the supplied dry block calibrator. Peripherals supplied include a certificate printer, label printer and bar code reader.

The package provides the foundation for professional instrumentation calibration within a QA program that requires optimal compliance and traceability. It can also be utilised for training of instrument technicians and engineers. The package can be customised to match site requirements, change pressure ranges, add/remove items as required.

Features

Advanced process/pressure test bench
Process calibrator/multimeter/PC module
Source & measure V, I , Ω, frequency
Simulate & measure temperature
Calibrate pneumatic & hydraulic pressure
Dry block calibrator included
Pumps, manifold, adaptors & fittings
Fixed & variable DC power supply modules
Temperature interface module for batch TC calibration
Automated calibration using EasyCal software

Pressure Calibration

The bench features an automatic controller module for pneumatic calibration from vacuum to 20 bar, with a 2 bar sub-sensor for low range performance. A regulated module for up to 200 bar can be used with a gas or N2 cylinder, or with the supplied pneumatic pump if line pressure is not available. Further precision measurement is via XTEG modules that feature a dedicated interface on the control centre. Pneumatic and hydraulic pumps are supplied. Calibrate pressure instrumentation such as:

Analogue and digital gauges, indicators, manometers
Calibrators, sensors, transducers, transmitters
Switches, valves, controllers, chart recorders

Temperature Calibration

The CBP-PROC1B enables users to perform efficient calibration of temperature instrumentation. EasyCal can control the supplied dry block calibrator whilst reading back the temperature measurement of the sensor under test on the 8060 module. Additionally the 7085A scanner module enables multi-channel measurements to be performed. Calibrate various products including:

Sensors, transmitters, indicators, thermometers
RTDs, thermocouples, recorders, controllers
Process calibrators, PRTs, thermistors

Additional Applications

The CBP-PROC1B is a primarily a process instrumentation calibration system, but can also be used to check and verify functions on electrical test equipment and other devices. The CalBench is also ideal for training and can show a wide range of testing applications common to industries.

Test process calibrators, mV/mA meters, decade boxes, flow totalizers
Calibrate DP flow transmitters, pulse meters, tachometers, counters
Train engineers & technicians instrumentation calibration
Run a complete calibration program with EasyCal software

EasyCal Calibration Software

The CBP-PROC1B comes with EasyCal software on the 8060 control centre. This enables software driven testing procedures and provides increased speed of calibration and consistency of results.

Produce traceable calibration certificates and test reports for quality standards with additional uncertainty information for ISO 17025 conformance.

Details

Bench Type and Fittings

Item	Qty	Code	Basic Description	Basic Purpose
1	1	7080-HD	CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm) Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.	Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2	1	7137	Perfo Panel Option: 40 piece Tool Hook Kit	For holding various tools and accessories.
3	1	7139	Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm)	Suitable for storing equipment and tools.
4	1	7133	Magnet Set for Perfo Panel (10 x round, 10 x hook type)	For securing documents and small tools to perfo panel.
5	1	7132	5 Drawer Unit (W 525 x D 550 x H 600 mm)	For storage of equipment, tools, documents, etc.
6	3	7134	Slotted Divider Kit for inside of drawer units	Partitions the drawer units for parts and components.
7	1	7123	Under bench CPU/Dry Block Calibrator Holder	For storing a dry block calibrator when not in use.

Modules

Item	Qty	Code	Basic Description	Basic Purpose
8	1	8060+	Multifunction Process Calibrator and Control Centre Module Advanced system package for precision source and measure capabilities. Integral process calibrator, 6.5 digit multimeter, PC and EasyCal software. Operation via 12.1 ” touch screen display. Built-in communication with compatible modules.	Source and measure process signals for electrical, frequency, temperature. Enables users to calibrate process instrumentation like transmitters, RTDs, thermocouples and more. EasyCal software and accessories included for automation, administration and certificate generation.
9	1	CCPAD	Control Centre Numeric Keypad Module with jog dial	Provides an ergonomic method of using the control centre module without mouse or keyboard.
10	1	8030B/G20b/CV2b/BARO	Automatic Pressure Calibrator Module with multiple ranges Sensor 1: 0 to 20 bar (300 psi), 0.01 % FS accuracy. Sensor 2: Vacuum to 2 bar (30 psi), 0.01 % FS accuracy. Sensor 3: Barometric Reference.	For automated pneumatic pressure calibration of gauges, transmitters etc. Auto-ranging capabilities across 2 sensors from vacuum to 20 bar (300 psi). Absolute pressure emulation with barometric reference. Supplied with contamination trap & hoses.
11	1	RMTEG-G200b/0.02	Digital Pressure Gauge Module with Regulator 0 to 200 bar (3000 psi), 0.02 % FS accuracy.	For high range pneumatic calibration work, with a line supply typically from a gas cylinder to enable regulator adjustment.
12	1	XTEG-G700b/0.02/M	Pressure Measurement Module with Control Centre Interface 0 to 700 bar (10,000 psi), 0.02 % FS accuracy.	For hydraulic calibration with accompanying 7195 benchtop pump.
13	1	XTEG-G100b/0.02/M	Pressure Measurement Module with Control Centre Interface 0 to 100 bar (1500 psi), 0.02 % FS accuracy.	For mid/high range pressure calibration work. Used with pump or T-piece method from controlled output module.
14	1	XTEG-CV2b/0.02/M	Pressure Measurement Module with Control Centre Interface Vacuum to 2 bar (30 psi), 0.02 % FS accuracy.	For low range pressure calibration. Used with pump or T-piece method from controlled output module.
15	1	7085A	Auto Switching Temperature Distribution Module	Connection module to enable batch testing of temperature devices like thermocouples.
16	1	7052	30 V DC 3 A Adjustable Power Supply Module - Digital	A variable DC supply to supplement various applications.
17	1	7087	Quad DC Power Supply Module 6 V (20 A), 12 V (10 A), 24 V (6 A), 48 V (3 A).	Provides a DC power supply to various instrumentation and devices under test.

Accompanying Products & Extras

Item	Qty	Code	Basic Description	Basic Purpose
18	1	7149	Electrical Vacuum Pump	Provides a vacuum for pressure modules.
19	1	7149-HCO	Housing & Connectivity Option for 7149 vacuum pump	Compact housing for the 7149 pump, situated under bench. Sound-proofed and power on/off via 7082 module on CalBench.
20	1	7195	Benchtop Hydraulic Pressure Calibration Pump Vacuum to 700 bar (10,000 psi).	Used for hydraulic pressure calibration with measurement modules.
21	1	7194A	Benchtop Pneumatic High Pressure Calibration Pump Vacuum to 200 bar (3,000 psi).	Pressure generation to 200 bar, suitable for use with pressure modules when compressed air source is not available.
22	1	7161	Dual Port Benchtop Manifold For Pneumatic use from vacuum to 200 bar (3000 psi).	Compact pneumatic manifold that provides two output ports. Hand-tight connectors for pressure instrumentation under test.
23	1	7198	Pressure Calibration Accessories Kit A comprehensive selection of fittings, adaptors and hoses.	Provides all the required pressure connections and fittings for modules and pumps to UUTs.
24	1	8072	Dry Block Calibrator (28 to 660 °C) With metric multi hole insert (1x3, 2x4, 1x5, 1x6, 1x9 mm), blank insert, EasyCal software driver pre-configured on control centre.	Temperature source for the calibration of probes, RTDs, and thermocouples. Manual control and EasyCal software compatible to automate calibration applications.
25	1	8072-METP	Pack of 16 Metric Inserts for 8072 3 mm to 20 mm holes	Inserts for use with different probe sizes, used with 8072.
26	1	CERTS	Traceable Calibration Certificates For all test modules and additional test equipment.	Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.

Downloads

File Name	File Size	Language	Format
CBP-PROC1B CalBench Package Data Sheet	615 kB	EN	PDF

CalBench Catalogue

30 MB

PDF
