Multifunction Calibrators
Time Electronics have a range of multifunction calibrators designed to calibrate both new and traditional test equipment. Models encompass a wide range of capabilities to cover multiple functions. Each calibrator is built to maintain high accuracy and cover a wide calibration workload.
To automate and optimise the calibration process Time Electronics' EasyCal Calibration Software can be used with compatible multi product calibrators. Increase speed of calibration, consistency of results and produce calibration certificates and reports to ISO 9001, ISO 17025, and other quality standards. With comprehensive features it provides the ideal platform for an efficient calibration program.
-
5025C Multifunction Calibrator
- 15ppm precision calibrator
- Calibrate up to 6.5 digit meters
- 11 standard functions
- 0 - 1050V & 0 - 22A (AC/DC)
- Resistance & capacitance
- Thermocouple/PT100 simulation
- Oscilloscope & power options
-
1017 Voltage / Current / Resistance Calibrator
- DC Volts 10nV to 100V
- DC Current 100nA to 100mA
- Resistance 10mΩ to 10kΩ
- 0.005% (50ppm) accuracy
- 1 ppm setting resolution
- Noise <2ppm (0.1 to 1Hz)
- Stability <5ppm/day, <25ppm/yr
-
5011 Resistance / Temperature Calibrator
- 1Ω to 120MΩ
- RTD & thermocouple simulation
- DCV and DCI options
- 10MHz frequency option
- RS-232 / GPIB / USB interfaces
- Front panel operation
- EasyCal Software compatible
-
5018 Programmable DC/AC V/I Calibrator
- 0 - 22V DCV (30V DC optional)
- 0 - 22V AC, 220V & 1kV DC options
- Optional 0 - 220mA AC/DC
- Ramping feature
- GPIB / RS-232 / USB interfaces
- Ideal for ATE applications
- EasyCal Software compatible
-
5025E Multifunction Calibrator
- 40ppm entry level calibrator
- Calibrate up to 4.5 digit meters
- 11 standard functions
- 0 - 1050V & 0 - 22A (AC/DC)
- Resistance & capacitance
- Thermocouple/PT100 simulation
- Oscilloscope & power options
-
5045 Oscilloscope Calibrator
- 1mV to 220V square wave/DC
- Frequency 0.1 to 100MHz
- Time markers 10s to 10ns
- Fast rise <300ps
- Front panel or PC control
- 2.2GHz sweep option
- EasyCal software compatible
-
5051+ Multifunction Calibration System
- Combined calibrator/DMM/PC
- 0 - 1050V & 0 - 22A (AC/DC)
- Source up to 1GΩ resistance
- Thermocouple simulate/measure
- PT100, C & L, scope calibration
- Clamp meter calibration
- EasyCal Software included
-
7050 Multifunction Process Calibrator
- Measure to 40V, 400mA, 40kΩ
- Output voltage up to 10V
- Output current to 20mA
- Output resistance to 40kΩ
- Accuracy 0.03% of range
- Thermocouple measure & simulate
- RTD measure & simulate: PT100
-

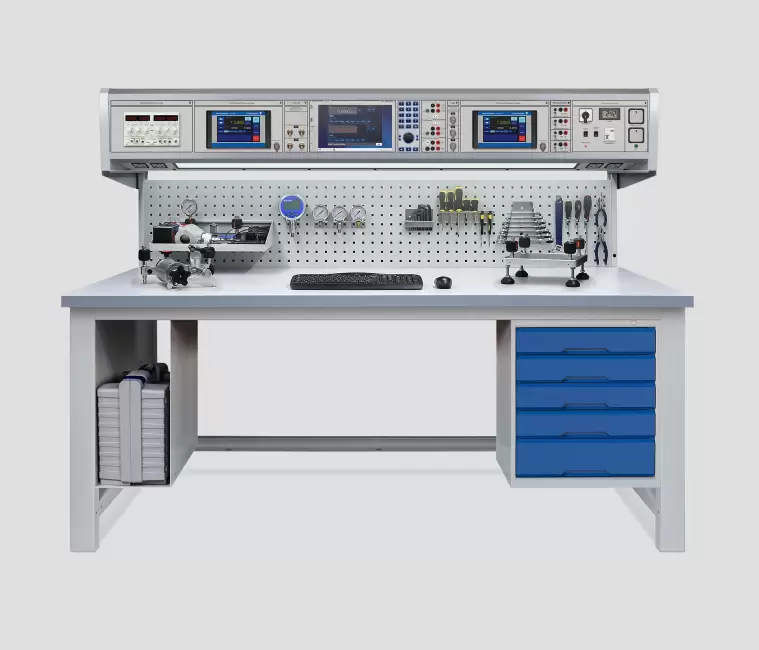

Calibration Benches
- Universal calibration systems
- Electrical/pressure/process
- Power supplies, DMMs & scopes
- 7051 MF calibrator/control module
- Ideal for on-site test facilities
- Automatic or manual calibration
- Complete lab design service
