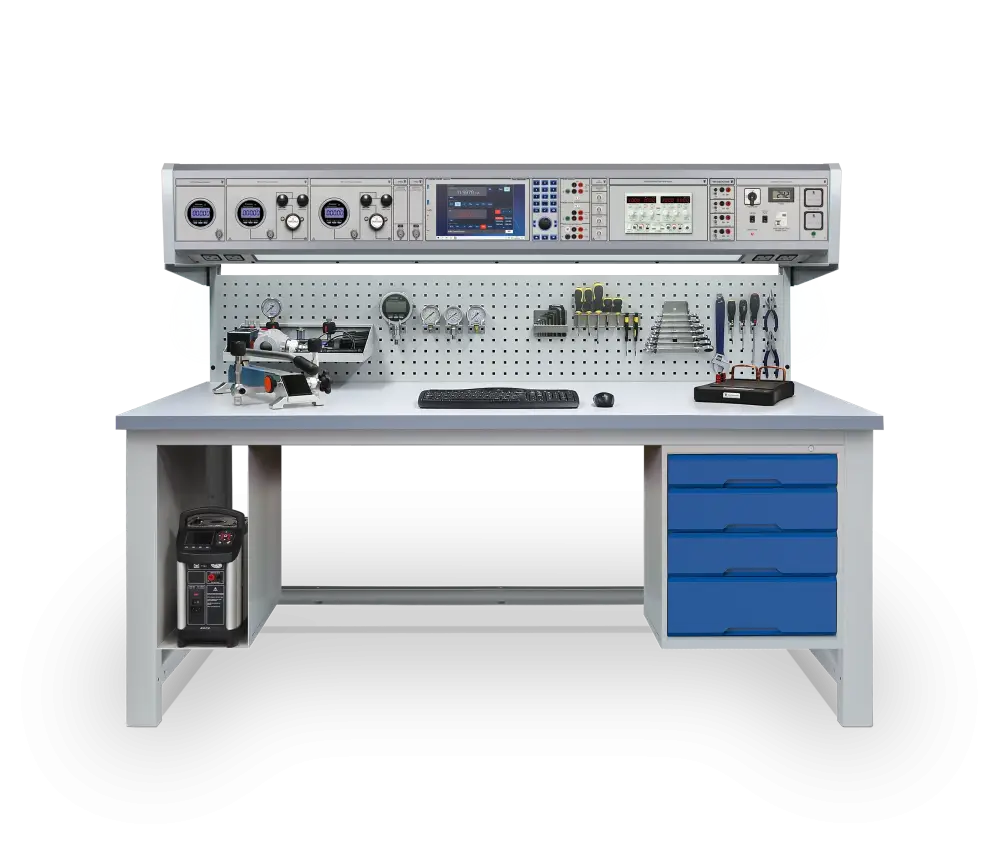

CBP-WW3 Wide Workload Calibration Test Bench

New range of CalBench Packages launched – View here

The CBP-WW3 CalBench is a package for testing and calibrating electrical, pressure, and temperature instrumentation. The selection of modules and accompanying products provide users with a flexible and high performance workstation. It can be operated manually or utilised for software driven calibration.

The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1” touch screen display. EasyCal software is pre-loaded and communicates with pressure modules and the dry block calibrator, enabling automated calibration and test management. The 5025E benchtop multifunction calibrator connects to the control centre, and provides a solution for calibrating engineer test tools like multimeters and clamp meters.

For pressure calibration, high accuracy digital gauge modules feature. For pneumatic workload two gauge modules have regulators for output adjustment and setting. For higher pressures gauge only modules are used with supplied pumps. Further modules include fixed and variable DC power supplies, and control centre operated scope and function generator modules. Storage is provided by an under bench drawer unit and perfo panel hooks shelf and parts bins. Calibration accessories include a pressure manifold, adaptors/fittings kit, test stand and dry block calibrator.

Features

Instrument & electrical CalBench package
Process calibrator/multimeter/PC module
Source/measure V, I , Ω, Hz, temperature
Benchtop electrical multifunction calibrator
2 regulated pressure gauge modules
3 precision pressure measurement modules
Scope & AFG modules, DC power supplies
Dry block calibrator for up to 660 °C
Pressure pumps, instrumentation test stand with manifold
Pressure adaptors & fittings kit, CalBench tool kit
EasyCal calibration software, peripherals supplied

Electrical Calibration

The package includes electrical sourcing functionality with the 5025E multifunction calibrator, and modules for measurement applications. It provides users with automated calibration capabilities to cover a wide range of electrical and electronic equipment including:

Multimeters, analogue meters, clamp meters, data loggers
Calibrators, decade boxes, conductance meters, tachometers
Power meters, watt meters, power supplies

Pressure Calibration

The CBP-WW3 features five main pressure modules for calibration work. These include two regulated calibrator modules covering vacuum to 20 bar (300 psi), utilised with line pressure. Three precision measurement modules provide range coverage to 700 bar (10,000 psi), used with the pneumatic & hydraulic pumps. Calibrate pressure instrumentation such as:

Analogue and digital gauges, indicators, manometers
Calibrators, sensors, transducers, transmitters
Switches, valves, controllers, chart recorders

Temperature Calibration

The CBP-WW3 enables users to perform efficient calibration of temperature instrumentation. EasyCal can control the dry block calibrator whilst reading back the temperature measurement of the sensor under test on the 8060 module. Calibrate various products including:

Sensors, transmitters, indicators, thermometers
RTDs, thermocouples, recorders, controllers
Process calibrators, PRTs, thermistors

EasyCal Calibration Software

The CBP-WW3 comes with EasyCal software on the 8060 control centre. This enables software driven testing procedures and provides increased speed of calibration and consistency of results.

Produce traceable calibration certificates and test reports for quality standards with additional uncertainty information for ISO 17025 conformance.

Details

Bench Type and Fittings

Item	Qty	Code	Basic Description	Basic Purpose
1	1	7080-HD	CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm) Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.	Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2	1	7125	Perfo Panel Option: 20 piece Tool Hook Kit	For holding various tools and accessories.
3	1	7139	Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm)	Suitable for storing equipment and tools.
4	1	7141	Perfo Panel Option: Storage Bin Strip (W 450 x H 75 mm) Supplied with 4 x 1 L bins.	For storage of components and small tools.
5	1	7124	4 Drawer Unit (W 525 x D 550 x H 600 mm)	For storage of equipment, tools, documents etc.
6	1	7123	Under bench CPU/Dry Block Calibrator Holder	For storing a dry block calibrator when not in use.

Modules

Item	Qty	Code	Basic Description	Basic Purpose
7	1	8060+	Multifunction Process Calibrator and Control Centre Module Advanced system package for precision source and measure capabilities. Integral process calibrator, 6.5 digit multimeter, PC and EasyCal software. Operation via 12.1 ” touch screen display. Built-in communication with compatible modules.	Source and measure process signals for electrical, frequency, temperature. Enables users to calibrate process instrumentation like transmitters, RTDs, thermocouples and more. EasyCal software and accessories included for automation, administration and certificate generation.
8	1	CCPAD	Control Centre Numeric Keypad Module with jog dial	Provides an ergonomic method of using the control centre module without mouse or keyboard.
9	1	CCSCOPE-2208B	Control Centre Integral Oscilloscope (2 channel) 100 MHz with connection module, control centre operation.	For basic R&M applications, fault finding and diagnostic work.
10	1	CC-AFG20	Control Centre Integral Function Generator 20 MHz with connection module, control centre operation.	Used to generate different types of electrical waveforms over the frequency range, and frequency measurement for fault diagnostics and repair work.
11	1	RMTEG-CV7b/0.02	Digital Pressure Gauge Module with Regulator Vacuum to 7 bar (100 psi), 0.02 % FS accuracy.	For pneumatic calibration work from vacuum to 7 bar (100 psi), commonly used with the 7149 electrical vacuum pump and external air supply (9 bar / 130 psi). Can be used manually with pump also.
12	1	RMTEG-G20b/0.02	Digital Pressure Gauge Module with Regulator 0 to 20 bar (300 psi), 0.02 % FS accuracy.	For pneumatic calibration work up to 20 bar (300 psi), requires a line supply (24bar / 350 psi) typically from a gas cylinder, to enable setting of output with regulator. Can be used manually with pump also.
13	1	XTEG-G100b/0.02/M	Pressure Measurement Module with Control Centre Interface 0 to 100 bar (1500 psi), 0.02 % FS accuracy.	For mid/high range pressure calibration work. Used with pump or T-piece method from controlled output module.
14	1	XTEG-G200b/0.02/M	Pressure Measurement Module with Control Centre Interface 0 to 200 bar (3000 psi), 0.02 % FS accuracy.	For high range pressure calibration work, commonly used with 7194A pneumatic pump.
15	1	XTEG-G700b/0.02/M	Pressure Measurement Module with Control Centre Interface 0 to 700 bar (10,000 psi), 0.02 % FS accuracy.	For hydraulic calibration with accompanying 7195 benchtop pump.
16	1	7056	Dual Adjustable DC Power Supply Module 2 x 30 V DC 3 A.	A variable DC supply to supplement various applications.
17	1	7087	Quad DC Power Supply Module 6 V (20 A), 12 V (10 A), 24 V (6 A), 48 V (3 A).	Provides a DC power supply to various instrumentation and devices under test.
18	1	7076	Fixed 110 V AC Power Supply Module 110 V AC up to 8 A, 2 mains sockets and 4 mm safety sockets.	Provides a 110 V AC output on 230 V AC CalBenches, meaning US type products can be powered and used. Provides a 110 V AC output on 230 V AC CalBenches, meaning US type products can be powered and used.

Accompanying Products & Extras

Item	Qty	Code	Basic Description	Basic Purpose
19	1	7149	Electrical Vacuum Pump	Provides a vacuum for pressure modules.
20	1	7149-HCO	Housing & Connectivity Option for 7149 vacuum pump	Compact housing for the 7149 pump, situated under bench. Sound-proofed and power on/off via 7082 module on CalBench.
21	1	7161	Dual Port Benchtop Manifold For Pneumatic use from vacuum to 200 bar (3000 psi).	Compact pneumatic manifold that provides two output ports. Hand-tight connectors for pressure instrumentation under test.
22	1	7115	Contamination Trap For pneumatic use from vacuum to 200 bar (3000 psi).	Contamination trap to protect pressure calibrators and controllers against impurities and residues released by pressure instrumentation under test.
23	1	7195	Benchtop Hydraulic Pressure Calibration Pump Vacuum to 700 bar (10,000 psi).	Used for hydraulic pressure calibration with measurement modules.
24	1	7194A	Benchtop Pneumatic High Pressure Calibration Pump Vacuum to 200 bar (3,000 psi).	Pressure generation to 200 bar, suitable for use with pressure modules when compressed air source is not available.
25	1	7198	Pressure Calibration Accessories Kit A comprehensive selection of fittings, adaptors and hoses.	Provides all the required pressure connections and fittings for modules and pumps to UUTs.
26	1	8100	Benchtop Instrumentation Test Stand	For fast and ergonomic positioning of UUTs like transmitters & gauges on the CalBench worktop.
27	1	5025E-S2	Benchtop Electrical Multifunction Calibrator AC/DC 1050 V / 22 A, variable resistance, Pt100 simulation, thermocouple simulation, conductance, capacitance, power calibration, 10 MHz digital frequency.	Source & simulation of signals for electrical, electronic, frequency, temperature calibration. Enables users to test and verify process and electrical instruments like sensors, multimeters, clamp meters and more.
28	1	9780	Clamp Meter Adaptor	Used with 5025E to calibrate clamp meters.
29	1	9773	Optical Tacho Adaptor	Used with 5025E to calibrate optical tachometers.
30	1	8072	Dry Block Calibrator (28 to 660 °C) With metric multi hole insert (1x3, 2x4, 1x5, 1x6, 1x9 mm), blank insert, EasyCal software driver pre-configured on control centre.	Temperature source for the calibration of probes, RTDs, and thermocouples. Manual control and EasyCal software compatible to automate calibration applications.
31	1	8072-METP	Pack of 16 Metric Inserts for 8072 3 mm to 20 mm holes	Inserts for use with different probe sizes, used with 8072.
32	1	8002	CalBench Environmental Monitoring System With magnetic rear for perfo panel mounting.	Measures and logs temperature, relative humidity and barometric pressure, with control centre interface.
33	1	CERTS	Traceable Calibration Certificates For all test modules and additional test equipment.	Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.

Downloads

File Name	File Size	Language	Format
CBP-WW3 CalBench Package Data Sheet	625 kB	EN	PDF

CalBench Packages Brochure

11.5 MB

PDF
