1017 Voltage / Current / Resistance Calibrator

1017 Voltage / Current / Resistance Calibrator
  • 1017 Voltage / Current / Resistance Calibrator

Features

  • DC Volts 10 nV to 100 V
  • DC Current 100 nA to 100 mA
  • Resistance 10 mΩ to 10 kΩ
  • 0.005 % (50 ppm) accuracy
  • 1 ppm setting resolution
  • Noise < 2 ppm (0.1 to 1 Hz)
  • Stability <5ppm/day, <25ppm/yr

1017 Images

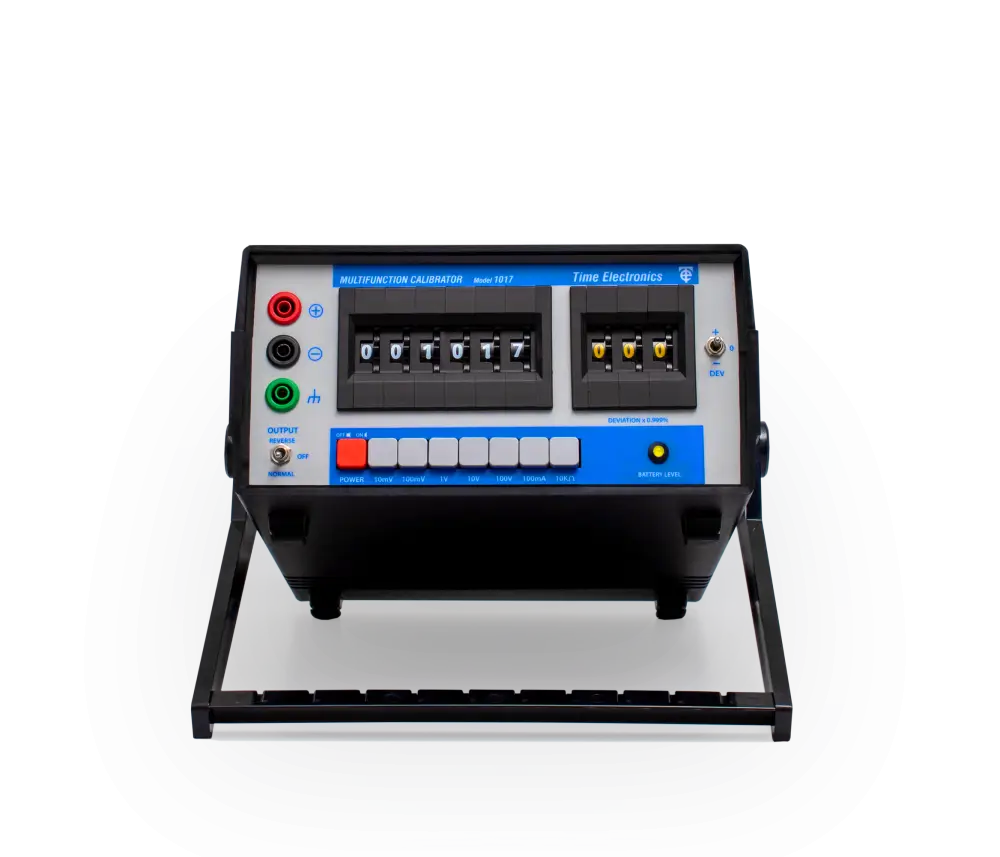

  • A high performance portable multifunction calibrator with voltage, current, and resistance ranges. The 1017 combines precision with simple operation, making it suitable for use in the workshop or field. Constructed in a compact and durable plastic case with a tilt stand/carry handle it takes up minimal bench space and is easily transportable.

    Five DC voltage ranges from 10 mV to 100 V full scale are available, each with a 6-digit (1 ppm) resolution. The DC current range is 100 mA full scale with a 100 nA (1 ppm) resolution. Resistance from 0.01 Ω to 10 kΩ is available 0.01 Ω steps.

    Stability and Temperature Coefficient
    Long-term stability is achieved by the use of high quality components and modern resistor technology. The 1017 features a precision reference diode that provides the input to the units active circuitry. The special low-thermal emf terminals reduce errors when working with microvolt signals.

    Digital Deviation Control
    Allows the output to be increased/decreased in % terms from 0 to +/- 0.999 %. This provides a direct read-out of error and simplifies the recording results for calibration certificates. It enables the user to immediately see if the unit under test is within specification.

    Portable Operation
    The 1017 can be powered from mains supply or by the internal rechargeable battery pack. Battery operation enables good performance where earth loop and noise pick-up occurs. When the calibrator is plugged into the mains supply the internal batteries will automatically start to recharge. If unplugged from the mains during operation the internal batteries will continue to power the instrument. Full charge allows 12 hours typical use. The battery condition monitored by a meter on the front panel.

    Applications
    The 1017 is suitable for calibrating and simulating a wide range of instruments including thermocouples, transducers, 4 to 20 mA and 0 to 10 V transmitters, and platinum resistance thermometers. It can be used for testing ranges on multimeters and electrical test tools with measurement capabilities.

  • Technical Specifications

    Voltage
    Ranges & Accuracy

    0 to 9.99999 mV in 10 nV steps / ± 0.02 % of setting ± 0.005 % of range
    0 to 99.9999 mV in 100 nV steps / ± 0.01 % of setting ± 0.004 % of range
    0 to 999.999 mV in 1 μV steps / ± 0.005 % of setting ± 0.002 % of range
    0 to 9.99999 V in 10 μV steps / ± 0.005 % of setting ± 0.002 % of range
    0 to 99.9999 V in 100 μV steps / ± 0.01 % of setting ± 0.004 % of range

    Output Resistance

    10 mV and 100 mV: 10 Ω. 1 V and 10 V: < 150 mΩ. 100 V: < 1 Ω.

    Drive Current Max

    10 and 100 mV: as 10 Ω output resistance. 1 V and 10 V: 150 mA; 100 V: 10 mA.

    Current
    Range & Accuracy


    0 to 99.9999 mA in 0.1 μA steps / ± 0.02 % of setting ± 0.004 % of range

    Drive Voltage Max

    10 V

    Resistance
    Range & Accuracy


    0 to 9.99999 kΩ in 0.01 Ω steps / ± 0.05 % of full scale.

    Power Rating

    0.25 W per resistor

    Residual resistance

    Less than 200 mΩ

    Deviation Control (V&I)

    0 % to 0.999 % in 0.001 % steps. Deviation accuracy: V & I output, 0.5 %.

    Temperature Coefficient

    Voltage and current ranges: < 10 ppm/°C. Resistance ranges: < 30 ppm/°C.

    Long Term Stability <5 ppm/day, <15 ppm/90-day, < 25 ppm/year

    Short Term Stability – Noise

    10 mV range: < 0.2 μV/sec, < 0.3 μV/10 sec, <0.4 μV/min
    100 mV range: < 0.2 μV/sec, < 0.4μV/10sec, <0.6 μV/min
    1 V range: < 0.2 μV/sec, < 0.5 μV/10sec, <1.5 μV/min
    10 V range: < 1.0 μV/sec, <2.0 μV/10sec, < 8.0 μV/min
    100 V range: < 40 μV/sec, <100 μV/10sec, <500 μV/min
    100 mA range: < 0.2 μA/sec, <0.4 μA/10sec, <1.0 μA/min

    Warm-up/Settling Time

    Warm-up: < 10 mins to full accuracy. Settling: < 0.5 secs, 100V range 5 secs.

    Output Connections The output is via low thermal emf terminals (0.2 μV/°C). A mains earth terminal is provided for screening purposes. Output polarity can be selected by a switch on the front panel.
    Power Supply The 1017 can be powered continuously from a 230 V 50/60 Hz (110 V to order) mains supply, or from the internal rechargeable NiMH battery pack.
    Battery Level Indicator A front panel display provides a continuous indication of the battery state.

    The above accuracies are independent of thermal emfs which can be 2 μV or more depending on the type of leads and connections used.


    General Specifications

    Operating Temperature 0 to 50 °C (32 to 120 °F). Full specification: 23 °C ± 5 °C.
    Operating Humidity 10 to 90 % non-condensing 25 °C (77 °F)

    Dimensions

    W 250x H 119 x D 314 mm

    Weight

    2.4 kg

    Optional Extras

    Calibration Certificates – traceable to NPL and UKAS

    Country of Origin UK
  • Models

    1017

    Multifunction Voltage/Current/Resistance Calibrator

    Options

    C152

    Traceable calibration certificate (Factory)

    C109

    Accredited calibration certificate (ISO 17025)
