7090 Pneumatic Calibration Pump

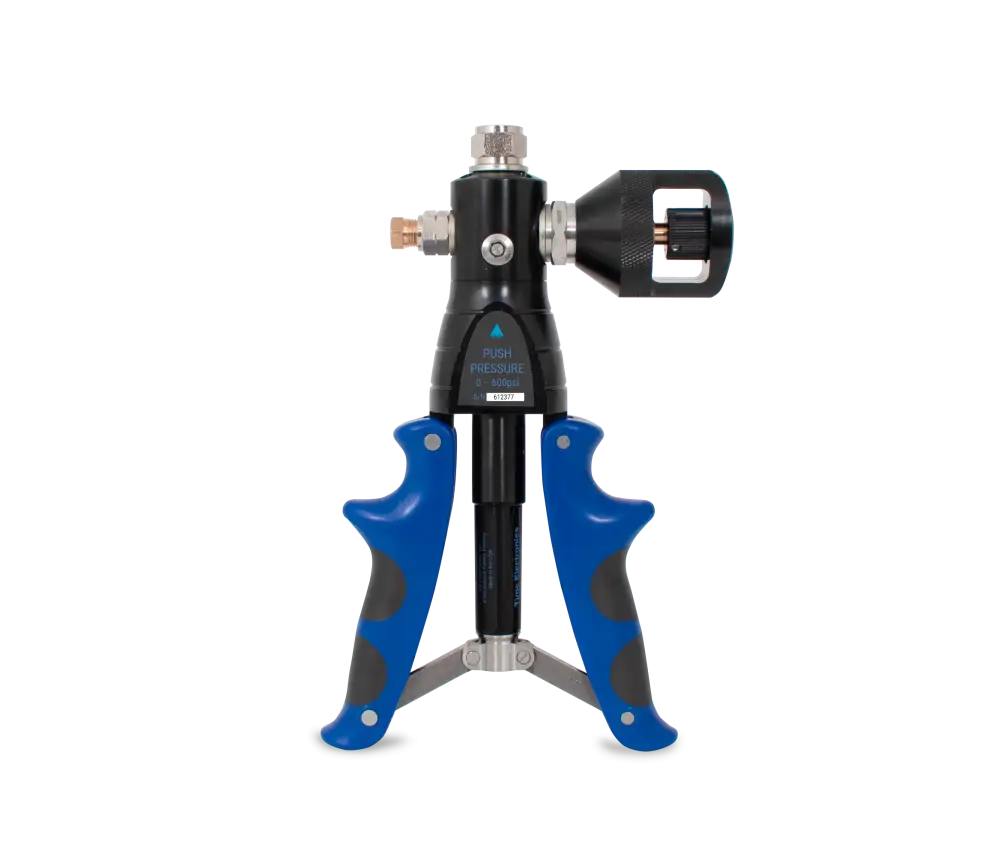

A pneumatic pressure calibration hand pump that combines performance with rugged design. It is designed for arduous use in the field or as a pressure and vacuum source in test facilities. The 7090 pressure pump is ideal for checking the calibration of gauges, pressure switches, transmitters, recorders and other pressure equipment. It covers a range from vacuum to 40 bar (600 psi).

The large comfortable handles with grips moulded into the design make it easy to control the instrument whilst pumping up to pressure. Features include protective caging for the vent valve guarding against accidental damage, and dual o-rings on all pistons to ensure zero leakage.

The 7090 pump is supplied as a kit with 1 meter of 6/4mm hose, a selection of 5 fittings, carry case, and user manual. Optional digital pressure gauges are available to accompany this pump, including the 7078 that can measure from vacuum to 100 bar.


  • Pressure to 40 bar (600 psi)
  • Vacuum to -950 mbar
  • Oversized check valve
  • Contoured cushioned handles
  • Protective caging for vent valve
  • Hose, fittings, & carry case supplied
  • Optional digital gauges


Technical Specification
General Specification


File Name File Size Language PDF
7090 Handheld Pneumatic Pump Data Sheet 645 kB PDF
7090 Handheld Pneumatic Pump User Manual 880 kB EN PDF
7091 Digital Gauge Data Sheet 316 kB EN PDF
7078 Digital Gauge Data Sheet 350 kB EN PDF
7090 Maintenance Kit Data Sheet (rebuild kit) 535 kB EN PDF
