5065 6.5 digit Multimeter

5065 Digital Multimeter, 6.5 digit DMM
  • 5065 6.5 digit multimeter
  • 5065 6.5 digit multimeter

Features

  • DC V to 1000 V, AC V to 750 V
  • AC/DC current to 3 A
  • Two and four wire resistance
  • Frequency from 3 Hz to 300 kHz
  • Period and diode measurement
  • Temperature measurements
  • USB interface, optional GPIB

5065 Images

  • The 5065 is a high performance, versatile 6½ digit bench multimeter with 19 measurement functions. Low cost, simple operation, stability, and high accuracy make the 5065 an ideal DMM for a variety of applications. In addition high speed means both the sampling rate and the data transfer rate can achieve 2000 readings per second.

    The comprehensive range of features makes the 5065 suitable for test engineers, R&D, service, and calibration technicians. The durable construction with a protective rubber guard and carry handle allows convenient benchtop use, and transportability. A soft carry case is available as an option.

    The front panel features a two-line, colour-coded display for easy to read measurements and functions. Control is simple, with common functions selected from a single button press.

    The 5065 measures AC/DC voltage, AC/DC current, 2 and 4 wire resistance, frequency, period, diode, continuity, thermocouples and RTD. In addition to standard functions many other capabilities such as Min/Max, Ratio/% and Null are included. Memory functions with up to 2000 readings can be stored and recalled. Limit testing with an external output can be configured to signal pass or fail.

    The USB interface enables connectivity to a PC. A basic setup and graphing application is supplied as standard. Add-in utilities for Microsoft Excel and Word allow simple data collection directly into a spreadsheet or document. An optional 10 channel scanner card is available which allows multiple inputs to be measured. Further options include test lead sets, GPIB interface, and an RTD probe adaptor.

    Applications
    The 5065 is ideal for applications ranging from testing and calibration to education. In R&D and production environments it can be used to check and test electronic devices, circuitry and components. It can also be utilised to make automated measurements for product validation. In calibration the 5065 is an accurate multimeter for testing electrical and electronic sources. It can also be used for signal measurements on process instrumentation such as transmitters, RTDs and thermocouples. Further applications include repair and service work, and experimental testing work in education and engineering.

    Also available for precision measurement is the 5075 digital multimeter, with superior functionality and range coverage for up to 10kV and 30A. It offers 7.5 digit resolution and is suitable for laboratory calibration applications.

    EasyCal Calibration Software
    The 5065 can be controlled via Time Electronics EasyCal software to automate the calibration process. This provides increased speed of calibration and consistency of results. Produce traceable calibration certificates and test reports for quality standards with additional uncertainty information for ISO 17025 conformance.

  • Technical Specifications

    DC Voltage
    Range Resolution Input Resistance Accuracy
    100.0000 mV 0.1 μV > 10 GΩ 0.0050 + 0.0035
    1.000000 V 1.0 μV > 10 GΩ 0.0040 + 0.0007
    10.00000 V 10 μV > 10 GΩ 0.0035 + 0.0005
    100.0000 V 100 μV 10 MΩ 0.0045 + 0.0006
    1000.000 V 1mV 10 MΩ 0.0045 + 0.0010
    DC Current
    Range Resolution Shunt Resistance Accuracy
    10.00000 mA 10 nA 5.1 Ω 0.05 + 0.02
    100.0000 mA 100 nA 5.1 Ω 0.05 + 0.005
    1.000000 A 1 μA 0.1 Ω 0.1 + 0.01
    3.00000 A 10 μA 0.1 Ω 0.12 + 0.02
    AC Voltage
    Range Resolution Frequency (Hz) Accuracy

    100.0000 mV

    0.1 μV

    3 to 5
    5 to 10
    10 to 20 k
    20 k to 50 k
    50 k to 100 k
    100 k to 300 k

    1.00 + 0.04
    0.35 + 0.04
    0.06 + 0.04
    0.12 + 0.05
    0.60 + 0.08
    4.00 + 0.50

    1.000000 V
    to
    750.000 V

    1.0 μV to 1 mV

    3 to 5
    5 to 10
    10 to 20 k
    20 k to 50 k
    50 k to 100 k
    100 k to 300 k

    1.00 + 0.03
    0.35 + 0.03
    0.06 + 0.03
    0.12 + 0.05
    0.60 + 0.08
    4.00 + 0.50

    750 V AC range is limited to 100 kHz.
    AC Current
    Range Resolution Frequency (Hz) Accuracy

    1.000000 A

    1 μA

    3 to 5
    5 to 10
    10 to 5 k

    1.00 + 0.04
    0.30 + 0.04
    0.10 + 0.04

    3.000000 A

    10 μA

    3 to 5
    5 to 10
    10 to 5 k

    1.10 + 0.06
    0.35 + 0.06
    0.15 + 0.06

    Resistance
    Range Resolution Test Current Accuracy
    100.0000 Ω 100 μΩ 1 mA 0.01 + 0.005
    1.000000 kΩ 1 mΩ 1 mA 0.01 + 0.002
    10.00000 kΩ 10 mΩ 100 μA 0.01 + 0.002
    100.0000 kΩ 100 mΩ 10 μA 0.01 + 0.002
    1.000000 MΩ 1 Ω 5 μA 0.01 + 0.002
    10.00000 MΩ 10 Ω 500 nA 0.04 + 0.002
    100.0000 MΩ 100 Ω 500 nA 0.8 + 0.02
    Specification applies to 4 wire mode. 2 wire specifications are x2 the stated accuracy and do not include external lead resistance.

    Diode Test
    1.0000 V


    10 μV


    1 mA


    0.01 + 0.02



    Continuity
    1000.00 kΩ


    10 mΩ


    1 mA


    0.01 + 0.03

    Frequency and Period
    Range Frequency (Hz) Accuracy (% of reading)

    100 mV to 750 V

    3 to 5
    5 to 10
    10 to 40
    40 to 300 k

    0.1
    0.05
    0.03
    0.01

    Temperature
    RTD Types Pt100, D100, F100, Pt385 or Pt3916. (Best Accuracy ± 0.08 °C )
    Thermocouple Types J, K, N, T and E (Accuracy ± 0.5 °C ). R & S (Accuracy ± 5 °C )


    General Specifications

    Standard Interfaces RS-232 and USB (GPIB optional)
    Line Power 100 to 230 V AC 50/60 Hz
    Dimensions W 210 x H 85 x D 350 mm
    Weight 4.4 kg

    For a full list of options please see the Models/Options tab.

  • Models

    5065

    Bench Digital Multimeter

    Options
    9714 10 channel scanner card
    9715 GPIB interface (replaces standard fitted RS-232 interface)
    9717 RTD probe adaptor
    9713 Carry case with test lead compartment

    9541

    Basic test lead set  -  View data sheet

    9796

    Premium test lead set  -  View data sheet

    C173 Traceable calibration certificate (Factory)
    C117 Accredited calibration certificate (ISO 17025)
    Calibration Software and Accessories

    ECFLA

    EasyCal Full License - when purchased with multifunction calibrator/DMM: Discounted full license with 1 year support.
    For further licenses and EasyCal add-ons see the Easycal web page or PDF brochure

    9795 Printer & connectivity kit (Printer, 4 port USB hub, numeric key pad & USB memory stick)  -  View data sheet
    9777 Bar code reader  -  View data sheet
    9778 Cal and ID label printer  -  View data sheet

    9779

    Job and address label printer  -  View data sheet

    ESP1 EasyCal support package 1: 1 year email and telephone support. Minor upgrades.
    ESP2 EasyCal support package 2: 2 year email and telephone support. Minor upgrades.
    EOT1 EasyCal online training session (Via remote desktop).
  • PDF Downloads
    File Name File Size Language

    5065 Data Sheet

    720 kB

    EN

    EasyCal Brochure

    4 MB (Low resolution)

    EN

    EasyCal Brochure

    8 MB (Higher resolution)

    EN

    Test Lead Sets Data Sheet

    182 kB

    EN

  • Request for Quotation

    5065 6.5 digit Multimeter

    Product Options
    1.20

Related Products

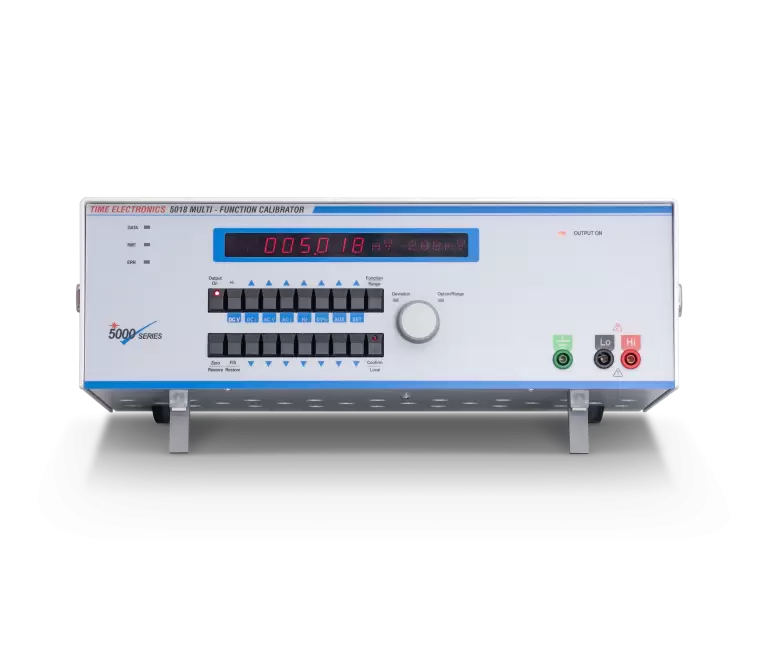

  • 5018 Programmable DC/AC V/I Calibrator
