TEG Manómetros digitales

Descripción
Especificaciones
Descargas
Cotización

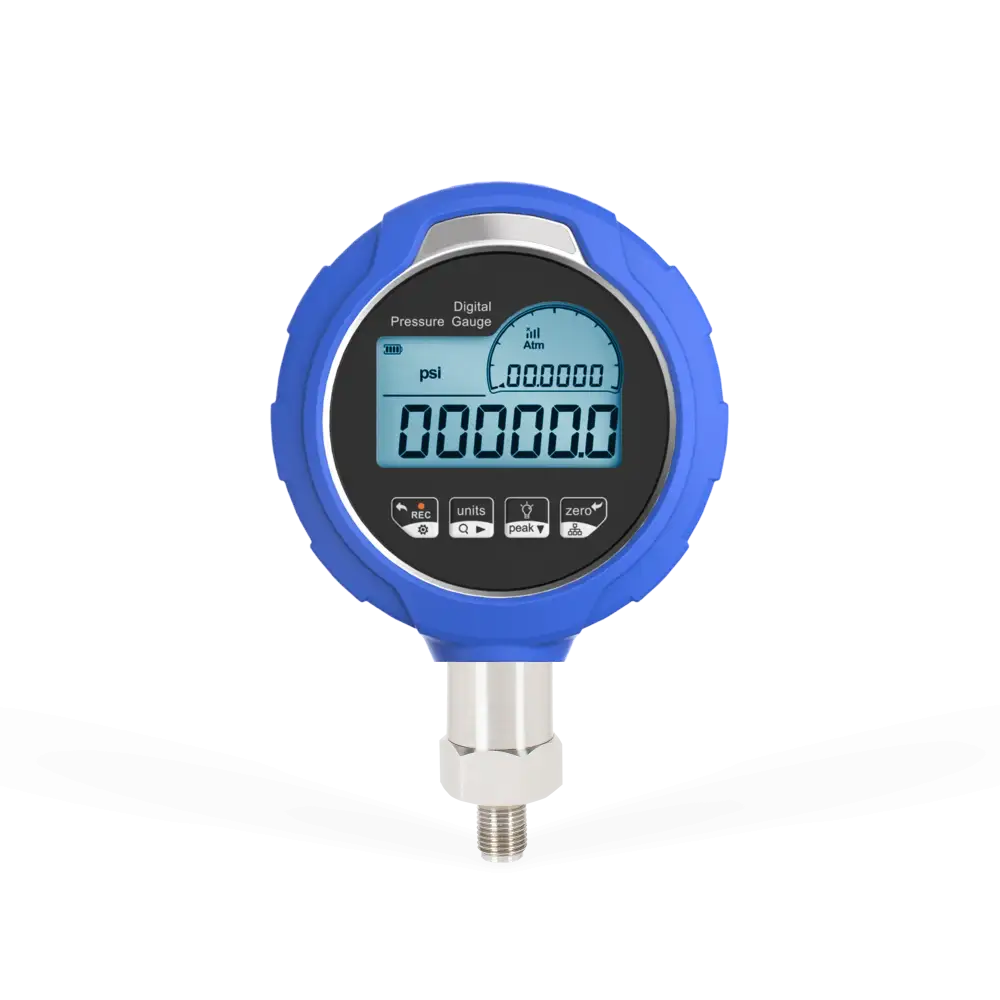

The TEG range of digital pressure gauges provide high accuracy, resolution and stability. Their robust design means that each gauge can be used in critical environments where it is necessary to measure with accuracy, reproducibility, long-term stability and protection against dust.

Gauges are available with accuracy up to 0.02% of full scale, with simple controls and various features for improved usability. An RS-232 port situated on the rear of the unit for software readback (EasyCal software from Time Electronics). Applications include lab and field pressure calibration when accompanied by a calibration pump for pressure generation.

Características

Rangos hasta 2500 bar (37500 psi)
0.02, 0.05, 0.1, 0.2 % FS precisiones
Versiones para diferentes tipos de presión
Capacidad única de autoprotección
Resolución de 5 dígitos
Batería de larga duración
3 veces por segundo mide la velocidad

Especificaciones

Especificación técnica

Range	Vacuum to 2500 bar (see below for specific models and ranges)
Pressure Types	Gauge / Absolute / Differential / Compound
Accuracy	0.2 % / 0.1 % / 0.05 % / 0.02 % of full scale
Pressure Units	Total of 11 pressure units possible: Pa, kPa MPa, Kgf/cm2, mmH2O, inH2O, mmHg, inHg, PSI, mbar, bar. Some units are not enabled depending on range
Over Pressure Warning	120 %
Measure Speed	Display rate: 3 readings per second (Default setting). Adjustable from 10 readings per second to 1 reading every ten seconds
Display	LCD with backlight, pressure values displayed up to 5 digits with 16.5 mm character height and analogue dial graph 25 mm wide
Resolution	5 digits
Pressure Bar Graph	In addition to the numeric pressure indication LCD display contains a circular fifty-one segment bar graph to provide the user with a quick visual estimation of pressure from 0 to 100 % full scale output
Analogue Dial Graphic	Includes pressure swing, % indication, low/high alarm
Peak Detection	Maximum and minimum peak values can be displayed
Ambient Temperature Measurement	Measurement of ambient temperature, range -10 °C to 50 °C, resolution 0.1 °C.
RS-232 Interface	DB9. EasyCal software compatible (available from Time Electronics)
Pressure Port	¼ ’’G BSP male thread, ½ ’’G BSP male thread (>1000 bar) 0.156 inch (4 mm) test hose for differential pressure (Other connections available per request)
Environment	Operating temperature: -10 °C to 50 °C (14 °F to 122 °F) / Compensation temperature: -10 °C to 50 °C (14 °F to 122 °F) / Storage Temperature: -20 °C to 70 °C (-4 °F to 158 °F) / Relative humidity: < 95 %
Power	Battery: one 9 V alkaline battery (included). Battery life: 300 hours (10 readings/sec), 6000 hours (1 reading/10sec), Power auto-off: 60 minutes power auto-off, can be disabled by user, 9 V 5.5 x 2.1 mm External power socket
Materials	Case material: Aluminium alloy. Wetted parts: 316SS
Dimensions	Display head only: 112 mm × 35 mm, Total height: 178 mm
Weight	580 g

Especificación general

Gauge Pressure
Model #	Range (bar)	Range (psi)	Available Accuracies (% FS)
TEG-GVAC	-1 to 0 bar	-15 to 0 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G160mb	0 to 160 mbar	0 to 2 psi	0.05 / 0.1 / 0.2
TEG-G350mb	0 to 350 mbar	0 to 5 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G700mb	0 to 700 mbar	0 to 10 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G1b*	0 to 1 bar	0 to 15 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G2b*	0 to 2 bar	0 to 30 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G3.5b	0 to 3.5 bar	0 to 50 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G7b	0 to 7 bar	0 to 100 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G10b	0 to 10 bar	0 to 150 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G20b	0 to 20 bar	0 to 300 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G35b	0 to 35 bar	0 to 500 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G40b	0 to 40 bar	0 to 600 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G70b	0 to 70 bar	0 to 1000 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G100b	0 to 100 bar	0 to 1500 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G140b	0 to 140 bar	0 to 2000 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G200b	0 to 200 bar	0 to 3000 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G350b	0 to 350 bar	0 to 5000 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G600b	0 to 600 bar	0 to 8700 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G700b	0 to 700 bar	0 to 10000 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-G1000b	0 to 1000 bar	0 to 15000 psi	0.1 / 0.2
TEG-G1600b	0 to 1600 bar	0 to 25000 psi	0.1 / 0.2
TEG-G2000b	0 to 2000 bar	0 to 30000 psi	0.1 / 0.2
TEG-G2500b	0 to 2500 bar	0 to 36000 psi	0.1 / 0.2

Absolute Pressure
Model #	Range (bar)	Range (psi)	Available Accuracies (% FS)
TEG-A350mb	0 to 350 mbar	0 to 5psi	0.1 / 0.2
TEG-A700mb	0 to 700 mbar	0 to 10psi	0.1 / 0.2
TEG-A1b	0 to 1 bar	0 to 15psi	0.1 / 0.2
TEG-A2b	0 to 2 bar	0 to 30psi	0.1 / 0.2
TEG-A3.5b	0 to 3.5 bar	0 to 50psi	0.1 / 0.2
TEG-A7b	0 to 7 bar	0 to 100psi	0.05 / 0.1 / 0.2
TEG-A10b	0 to 10 bar	0 to 150psi	0.05 / 0.1 / 0.2
TEG-A20b	0 to 20 bar	0 to 300psi	0.05 / 0.1 / 0.2
TEG-A35b	0 to 35 bar	0 to 500psi	0.05 / 0.1 / 0.2
TEG-A70b	0 to 70 bar	0 to 1000psi	0.05 / 0.1 / 0.2
TEG-A100b	0 to 100 bar	0 to 1500psi	0.05 / 0.1 / 0.2
TEG-A200b	0 to 200 bar	0 to 3000psi	0.05 / 0.1 / 0.2
TEG-A350b	0 to 350 bar	0 to 5000psi	0.05 / 0.1 / 0.2

Compound Pressure
Model #	Range (bar)	Range (psi)	Available Accuracies (% FS)
TEG-C160mb	0 to ±160 mbar	0 to ±2 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-C350mb	0 to ±350 mbar	0 to ±5 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-C400mb	0 to ±400 mbar	0 to ±6 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-C600mb	0 to ±600 mbar	0 to ±9 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-C1b	0 to ±1 bar	0 to ±15 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-CV2b	-1 to 2 bar	-15 to 30 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-CV4b	-1 to 4 bar	-15 to 60 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-CV7b	-1 to 7 bar	-15 to 100 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-CV10b	-1 to 10 bar	-15 to 150 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-CV20b	-1 to 20 bar	-15 to 300 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-CV25b	-1 to 25 bar	-15 to 360 psi	0.02 / 0.05 / 0.1 / 0.2
TEG-CV40b	-1 to 40 bar	-15 to 600 psi	0.02 / 0.05 / 0.1 / 0.2

Differential Pressure
Model #	Range (bar)	Range (inH2O)	Available Accuracies (% FS)
TEG-DP2.5mb	0 to ±2.5 mbar	0 to ±1 inH2O	0.05
TEG-DP5mb	0 to ±5 mbar	0 to ±2 inH2O	0.05
TEG-DP10mb	0 to ±10 mbar	0 to ±4 inH2O	0.05
TEG-DP25mb	0 to ±25 mbar	0 to ±10 inH2O	0.05
TEG-DP50mb	0 to ±50 mbar	0 to ±20 inH2O	0.05
TEG-DP75mb	0 to ±75 mbar	0 to ±30 inH2O	0.05
TEG-DP160mb	0 to ±160 mbar	0 to ±50 inH2O	0.05
TEG-DP350mb	0 to ±350 mbar	0 to ±150 inH2O	0.02 / 0.05
TEG-DP700mb	0 to 700 mbar	0 to ±300 inH2O	0.02 / 0.05

Opciones

Descargas

Nombre del Archivo	Tamaño del Archivo	Idioma	Formato
TEG Manómetros digitales ficha técnica	377 kB	EN	PDF
