7024 Osciloscopio digital

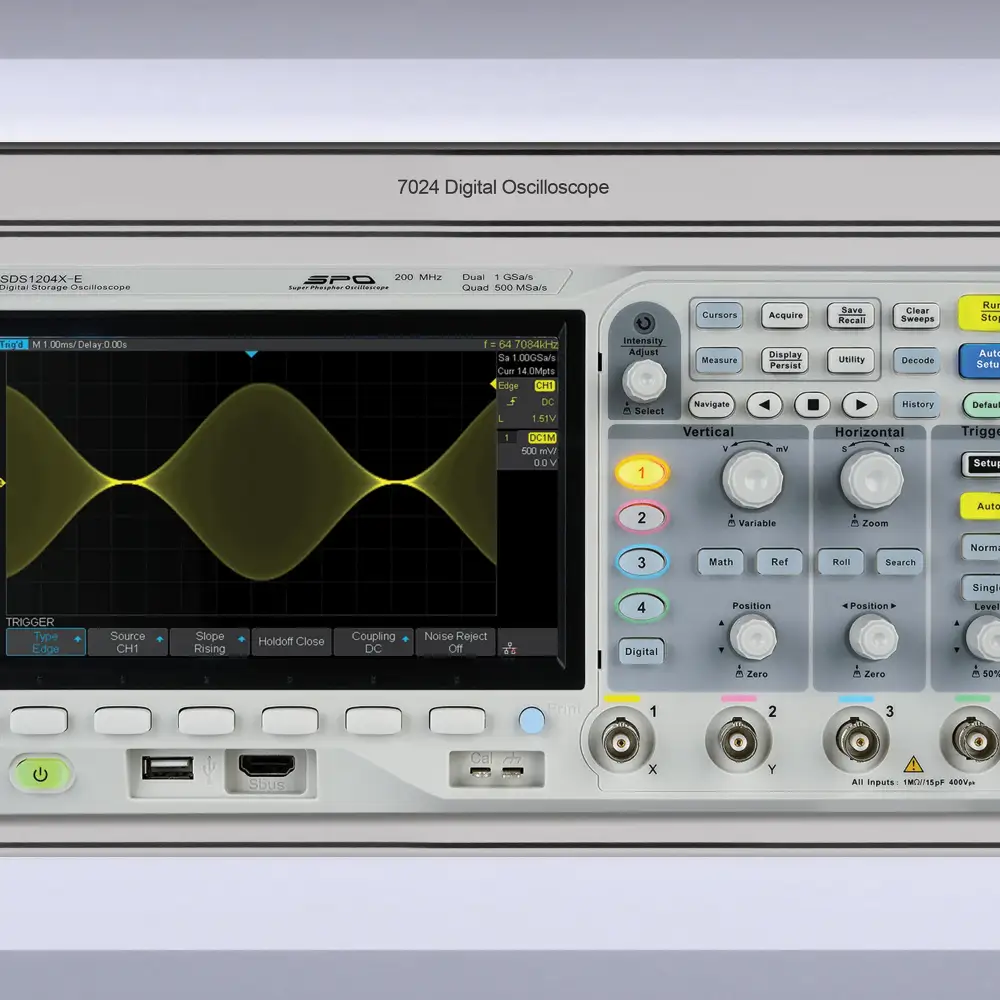

The 7024 is a digital storage oscilloscope with 200 MHz bandwidth and 4 analogue channels. It has a maximum sample rate of 1 GSa/s and a standard record length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design with quick-key single press buttons for common functions and settings.

The 7024 employs a new generation of SPO (Super Phosphor Oscilloscope) technology from Siglent, that provides excellent signal fidelity and performance. The system noise is low, with a minimum vertical input range of 500 uV/div and an innovative digital trigger system with high sensitivity and low jitter. Waveform capture rates are up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode).

The oscilloscope supports 38 parameters measurements and common mathematical operations to speed up complex / repetitive measurements. Further functions include on-screen bode plot, search and navigation.
