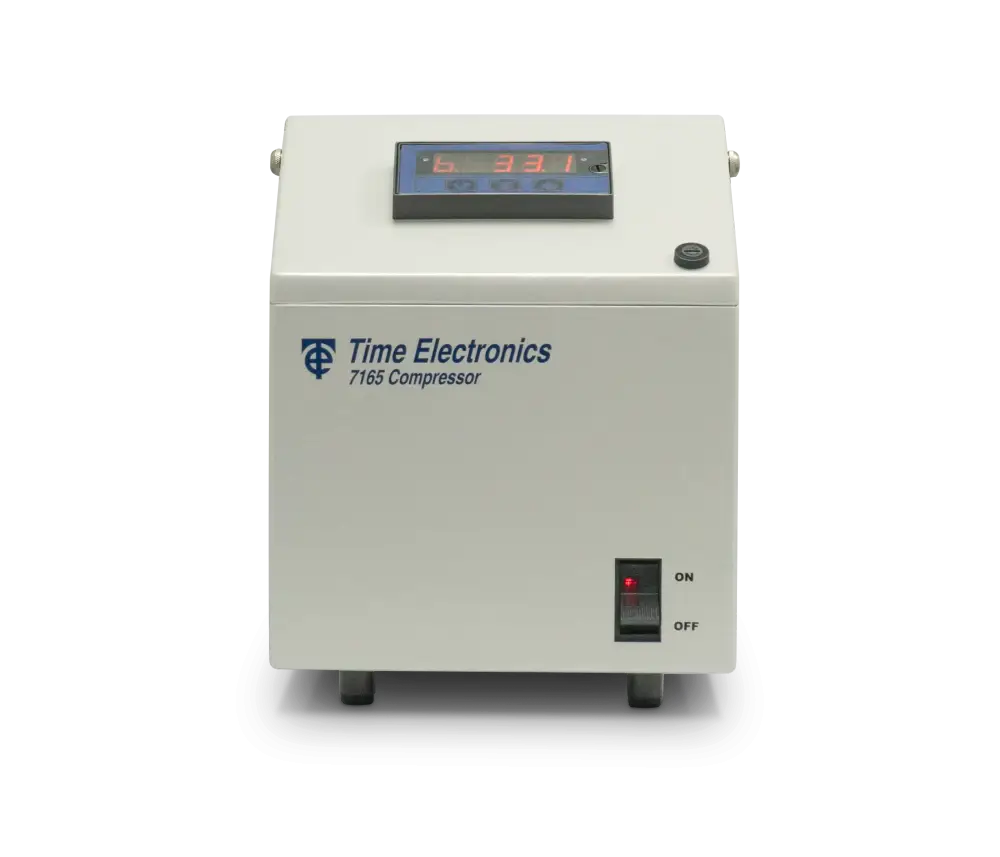

7165 Compact High Pressure Compressor

A range of compact pressure compressor pumps for supplementing calibration benches and pressure instruments. Primarily designed for use with the 8030 pressure controller, 7165 models can be used to create a fully automated pressure calibration system. This removes the requirement for nitrogen cylinders or bulky high pressure compressors.

Four versions are available with pressure generation up to 70 bar. Each unit is supplied pre-configured to the controller or calibrator they are supplementing, enabling quick and easy set up by the end user. This works by pre-setting the 7165 pressure to approximately 110 % above the controller line pressure requirement. Once connected, the pump can be started in two button presses to reach the pressure set point.

In addition to the standard transportable 7165 models, a CalBench integrated version is available. This solution situates the pump inside the CalBench console to create a self-sufficient pressure system. It is ideal for CalBenches used in small workshops or containers. CalBench integrated versions do not feature a panel display, but are operated via a virtual control software application on the control centre module.

Features

  • Compact electric pressure pump
  • Suitable for use with pressure controllers
  • Models for 17, 35, 50 or 70 bar
  • Oil free system, provides clean dry air
  • Front panel controls and display
  • Accuracy 1 % FS
  • RS-232 interface for remote control
  • Minimess fitting on output, hose supplied

Specifications

Technical Specification
General Specification
Options

Downloads

File Name File Size Language Format

7165 High Pressure Compressor Data Sheet

515 kB

EN

PDF

7165 High Pressure Compressor User Manual 2.7 MB EN PDF
