5011 Resistance / Temperature Calibrator

5011 Precision RTD Calibrator
  • 5011 Precision Resistance and Temperature Calibrator & Source

Features

  • 1Ω to 120MΩ
  • RTD & thermocouple simulation
  • DCV and DCI options
  • 10MHz frequency option
  • RS-232 / GPIB / USB interfaces
  • Front panel operation
  • EasyCal Software compatible

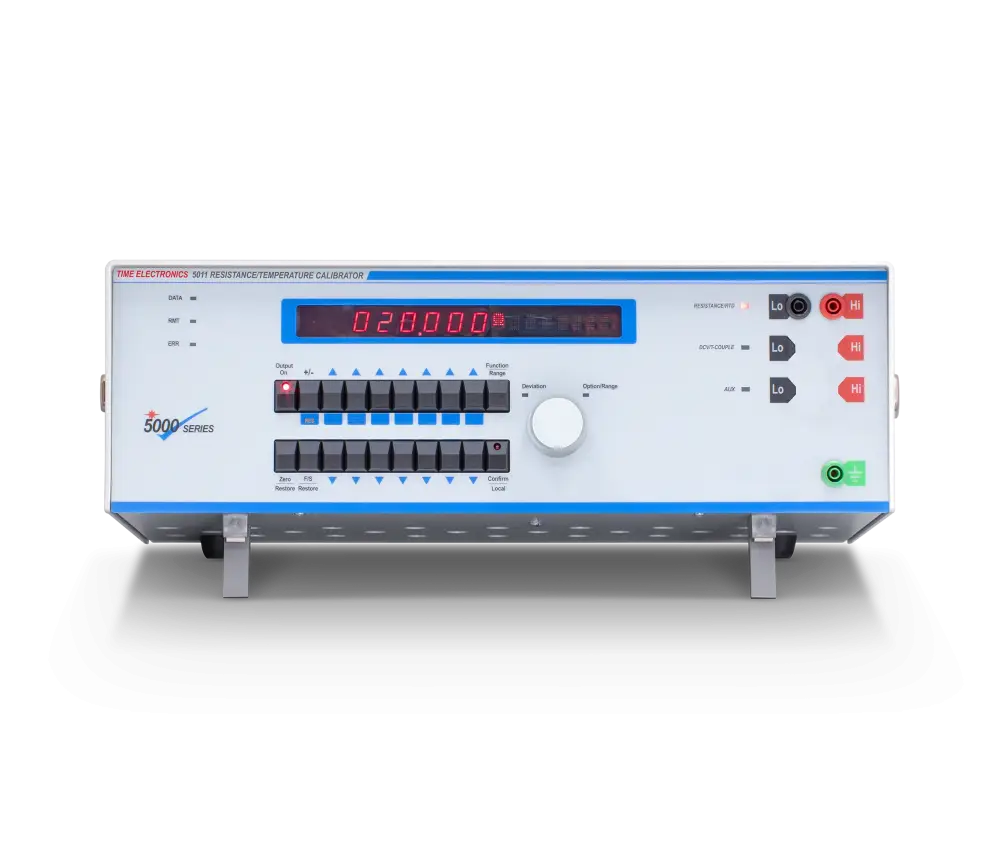

5011 Images

  • The 5011 is a versatile, high accuracy calibrator that can be used in a wide range of applications across various industries. Primarily used as a programmable resistance / RTD source, the 5011 provides precision resistance with a best accuracy of 0.01% and 1mΩ resolution (50Ω to 1kΩ).

    Internal options for increased capabilities can be fitted as per customer requirement. These include DC voltage and thermocouple simulation, DC current, and frequency. The 5011 can be used as a laboratory grade resistance and temperature calibrator, or incorporated into an automated test system for dedicated signal injections. A rack mount kit option is also available.

    Simple Operation and Clear Visual Display
    Front panel operation allows the user to quickly set the function and output required. Using the jog / shuttle dial deviation the user can finely adjust the output value as a percentage (+/- 9.99%). All this information is shown on an easy to read LED display.

    As standard the 5011 uses a SCPI command structure for programming. It also supports the Time Electronics 9811/19/20 command set making it an ideal replacement for these legacy models.

    Flexible Options
    A range of internally fitted options are available for the 5011, providing added functionality and features. The DCV / Thermocouple option provides a DC voltage source (+/- 20V) and simulates thermocouple types K, J, T, R, S, N, E and B. With the DC current option fitted the 5011 can source up to 220mA. This makes the instrument ideal for accurate process control calibration. Also available is a 0.1Hz to 10MHz frequency option (Period 100ns to 10s). The output is variable with a best resolution setting of 0.1Hz.

    EasyCal Software - Manage, Automate and Optimise the Calibration Process
    Connect the 5011 to a PC/Laptop (via RS-232, GPIB, or USB) installed with EasyCal software and automate the calibration process. This provides increased speed of calibration and consistency of results. Easily produce calibration certificates and reports to ISO 9001, ISO 17025, and other international quality standards.

  • Standard Features

    Resistance
    Range Accuracy Resolution
    1Ω to 20Ω 0.01% +/- 5mΩ
    20Ω to 99.999Ω 0.01% +/- 5mΩ 1mΩ/5mΩ*
    100Ω to 999.999Ω 0.01% +/- 5mΩ 1mΩ
    1kΩ to 9.999kΩ 0.02% +/- 20mΩ
    10kΩ to 99.999kΩ 0.01% +/- 1Ω
    100kΩ to 999.99kΩ 0.01% +/- 10Ω 10Ω
    1MΩ to 9.9999MΩ 0.02% +/- 100Ω 100Ω
    10MΩ to 120MΩ 0.1% +/- 1kΩ 1kΩ

    * Output Setting Resolution below 50Ω is 5mΩ

    Temperature Coefficient Less than 50ppm per °C
    Power Rating 0.1 Watt per resistor
    Maximum Voltage 250V
    Resistance Switch Time < 250μs
    Operation Time < 300ms
    End Resistance Variation < 2.5mΩ
    PRT Simulation
    RTD Type Alpha Coefficient Range Accuracy
    PT100 0.003850 -180 to -100°C 0.1°C
    PT100 0.003850 -100 to 850°C 0.05°C

    It should be noted that the accuracy of the PRT simulation is determined by the accuracy of the PRT tables (BS EN 60751) published by the British Standards Institute. The 5011 uses precise digital interpretation of the tables to output resistance values that are within the accuracies specified in the table.


    Options (order code in brackets)

    Thermocouple Simulation (9711)
    Type Range °C Accuracy °C
    J -210 to 150 / 150 to 1200 0.15 / 0.3
    K -270 to 190 / 190 to 1250 0.5 / 0.6
    T -200 to 150 / 150 to 400 0.4 / 0.5
    R -50 to 800 / 800 to 1750 0.8 / 2.0
    S -50 to 850 / 850 to 1750 0.9 / 2.0
    B 100 to 1200 / 1200 to 1800 1.0 / 2.0
    N -270 to 260 / 260 to 1300 0.5 / 0.4
    E -50 to 1000 0.3

    Cold Junction Compensation +/- 0.5°C (applies to ambient changes of less than +/- 1°C at 23°C).
    The accuracy of the thermocouple simulation is determined by the accuracy of the 5011’s DC voltage function and the accuracy of the standard thermocouple tables (BS EN 60584-1) published by the British Standards Institute. The 5011 uses precise digital interpretation of the tables to output voltage levels that are within the accuracies specified in the table.

    DC Voltage* (9711)
    Range Accuracy Resolution
    20mV 100ppm + 4μV 100nV
    200mV 30ppm + 6μV 1μV
    2V 25ppm + 20μV 1μV
    20V 25ppm + 150μV 10μV

    * Specifications apply from 10 to 100% of range. 10% over range.

    DC Current* (9718, requires 9711 option to be fitted also) Compliance Voltage: 11V
    Range Accuracy Resolution
    200μA 150ppm + 15nA 1nA
    2mA 100ppm + 40nA 10nA
    20mA 80ppm + 200nA 10nA
    200mA 80ppm + 3μA 100nA

    * Specifications apply from 10 to 100% of range. 10% over range.

    Digital Frequency / Period (9729): 2V pk/pk approx

    Range

    0.1Hz to 10MHz / 100ns to 10s

    Accuracy 20ppm


    General Specifications

    Warm up 30 minutes to full accuracy
    Settling Time Less than 5 seconds
    Standard Interfaces GPIB (IEEE-488), RS-232, USB

    Temp Performance

    Operating: 0 to 40°C, Full Spec: 23°C +/- 5°C, Storage: -10°C to 50°C

    Operating Humidity < 80% non-condensing
    Operating Altitude 0 to 3km. Non operating: 3km to 12km
    Line Power 100 - 230V AC 50/60Hz. Power Consumption 60W typical, 80W Max.
    Dimensions W450 x D272 x H152mm (18 x 11 x 7”)
    Weight 7kg (15.4lbs)
    Country of Origin UK

    Supplied With

    User manual, RS-232 cable, and USB adaptor/cable

  • Models

    5011

    Resistance and Temperature Calibrator

    Internal Options
    9711 DC Voltage and Thermocouple Simulation
    9718 Current Option (220mA max)
    9729 Frequency Option (10MHz digital)
    9733 Rear panel terminals
    External Options and Calibration Certificates
    9728 19” Universal Rack Mount Kit

    9541

    Basic Test Lead Set  -  View data sheet

    9796

    Premium Test Lead Set  -  View data sheet

    C171 Factory Calibration Certificate (NPL traceable)
    C115 UKAS Calibration Certificate (ISO 17025)
    calibration software and accessories

    ECFLA

    EasyCal Full License - when purchased with multifunction calibrator/DMM: Discounted full license with 1 year support.
    For further licenses and EasyCal add-ons see the Easycal web page

    9795

    Printer & Connectivity Kit (Printer, DVD-RW, 4 Port USB Hub, Numeric Key Pad & USB Memory Stick)  -  View data sheet

    9777 Bar Code Reader  -  View data sheet
    9778 Cal and ID Label Printer  -  View data sheet

    9779

    Job and Address Label Printer  -  View data sheet

    9597 GPIB Cable

    ESP1

    EasyCal Support Package 1: 1 year email and telephone support. Minor upgrades.

    ESP2 EasyCal Support Package 2: 2 year email and telephone support. Minor upgrades.
