1071 Capacitance Decade Box

1071 Capacitance Box
  • 1071 Capacitance Decade Box
  • 1071 Capacitance Substitution Box

Features

  • 10pF to 100μF
  • 1% accuracy
  • In-line readout
  • Colour coded digits
  • Safety terminals
  • Bi-polar working
  • Supplied with protective cover

1071 Images

  • High accuracy and wide range makes the 1071 capacitance decade box suitable for applications in industry and education.

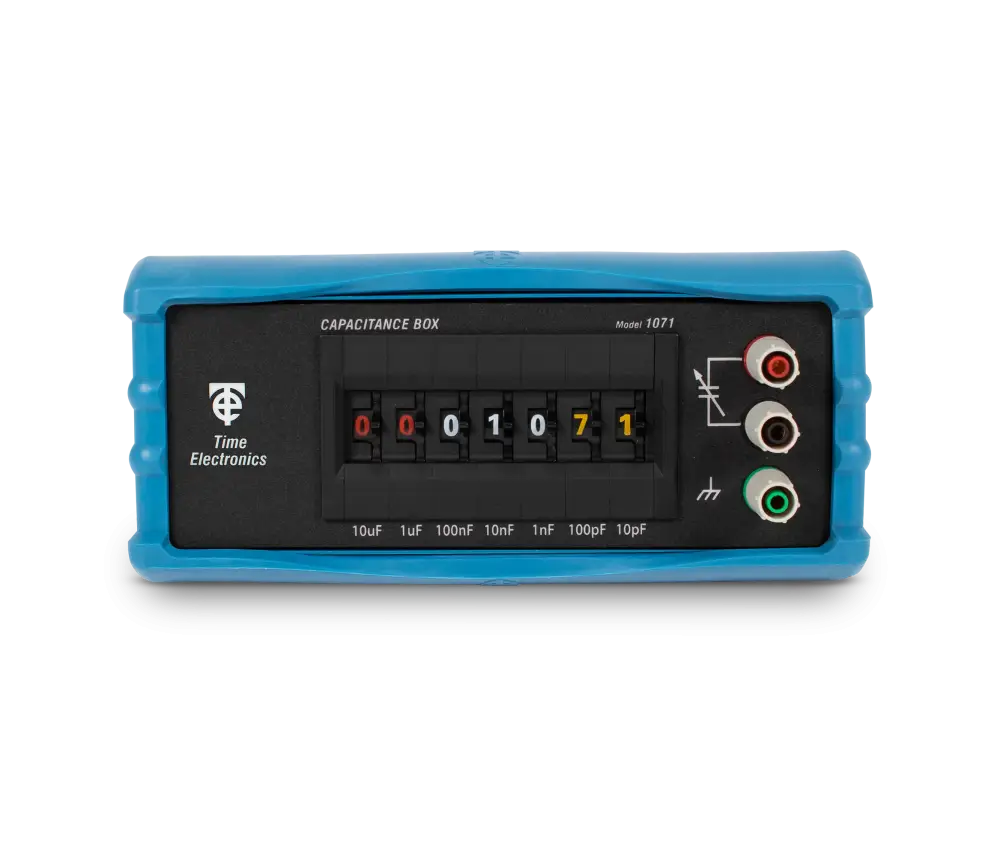

    It is both compact and robust, housed in a metal case that provides complete screening, with a protective rubber cover to guard the unit against everyday wear and tear. The 7-digit thumbwheel switch enables simple and precise setting of the capacitance value.

    Clear Visual Indication
    To make selecting and reading the setting easy the 1071 incorporates colour coded digits: μF - red, nF - white, pF - yellow.

    Safety Terminals
    Compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.

    Added Protection
    The 1071 capacitance box comes fitted with an ergonomic rubber cover providing increased protection and durability. It has a textured grip for comfortable handling and side openings to place labels. It is easy to remove if the user prefers a stand-alone unit or to house the 1071 in the optional 9026 carry case.

  • Technical Specifications

    Range 0 to 100μF
    Resolution 10pF steps (9 steps per decade)
    Residual Capacitance Approximately 55pF
    Decade 10pF 100pF 1nF 10nF 100nF 1μF 10μF
    Accuracy @ 1kHz 1% ± 5pF 1% ± 5pF 1% ± 5pF 1% 1% 1% 5%
    Capacitor Type Silver mica Silver mica Silver mica Silver mica Polycarbonate Polycarbonate Polyester

    Max Voltage

    300V DC
    200V AC

    300V DC
    200V AC

    300V DC
    200V AC

    100V DC
    72V AC

    100V DC
    72V AC

    100V DC
    115V AC

    63V DC
    50V AC

    Max Temp Coefficient 200ppm/°C 200ppm/°C 50ppm/°C 50ppm/°C 75ppm/°C 75ppm/°C 300ppm/°C
    Power Factor @ 1kHz < 0.0025 < 0.0015 < 0.002 < 0.01 < 0.01 < 0.01 < 0.01
    Insulation Resistance > 50GΩ > 50GΩ > 50GΩ > 30GΩ > 30GΩ > 30GΩ > 30GΩ


    General Specifications

    Dimensions W215 x H100 x D120mm including protective cover (W200 x H75 x D110mm without)
    Weight 1kg including protective cover (0.8kg without)
    Supplied With Protective cover (fitted) and user manual
    Optional Extras Leather carry case. Calibration certificates traceable NPL and UKAS
    Country of Origin UK
  • Models

    1071

    Capacitance Decade Box

    Options
    9026 Leatherette Carry Case
    C161 Factory Calibration Certificate (NPL traceable)
    C114 UKAS Calibration Certificate (ISO 17025)

    Also available: 1070 Capacitance Decade Box (100pF to 10μF)
