Soldering Modules

Soldering and Rework Modules

Modules used for PCB repairs, soldering and rework

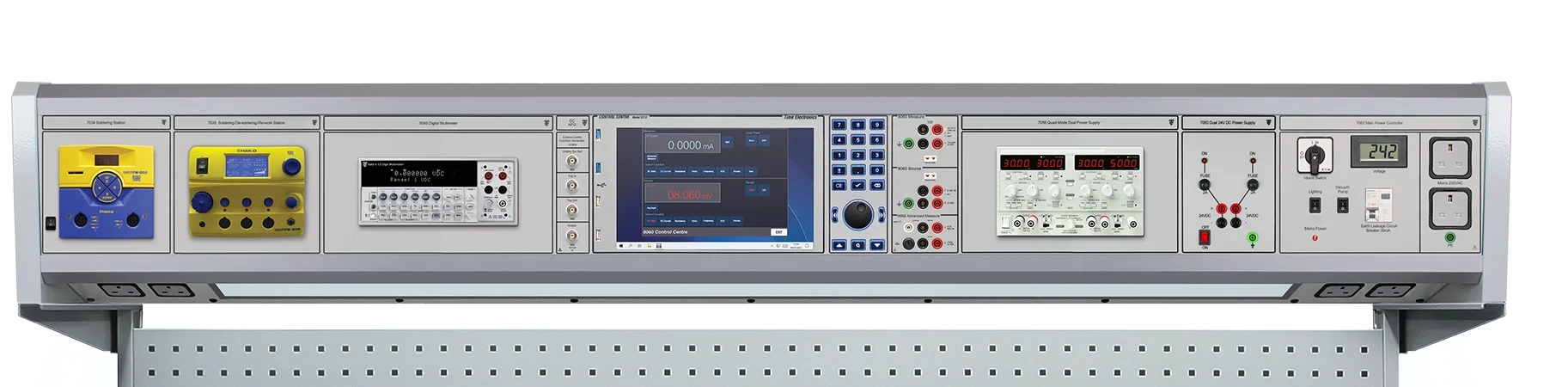

Modules for soldering, desoldering and rework applications. They are suitable for R&M CalBenches, allowing users to perform repairs of devices and work on electrical components like PCB's. Each module has features that provide quality across a wide range of soldering applications.

All models are also available as benchtop units. We also have a range of accompanying soldering equipment including fume extractors, circuit board holders and magnifying lamps.

The 7034 is a professional solder station module with 2 ports. The 7035 is an advanced all-in-one station that has three simultaneously powered ports for soldering, de-soldering and hot air rework. It has a integral pump for vacuum and air flow, so no external pressure source is required.

Each module is supplied ready for use with a soldering iron, tip and stand. The 7035 comes with desoldering and rework nozzles also. The 7146 is an optional 6 piece tip set, for both modules.

  • Soldering and Rework Modules

    7034 Soldering Station

    • High performance soldering module
    • Digital Display for set up & operation
    • 200 to 450 °C
    • 70 W (24 V) soldering iron
    • °C or °F configuration
    • Auto shut off function
    • Iron, tip, stand & holder supplied
    View Data Sheet
    PDF
  • Soldering and Rework Modules

    7035 Soldering & Re-Work Station

    • Soldering, Desoldering & Re-work
    • 3 simultaneous powered ports
    • LCD Display for set up & operation
    • °C or °F configuration
    • Manual or auto modes
    • Built-in pump for vacuum & air flow
    • Supplied complete with tip & nozzles
    View Data Sheet
    PDF
  • Soldering and Rework Modules

    7146 Soldering Tip Set

    • 6 piece tip set for use with soldering irons
    • 1 x Conical Style Tip R0.5 mm x 10 mm
    • 1 x Chisel Style Tip 1.2 mm x 10 mm
    • 1 x Chisel Tip 1.6 mm x 10 mm
    • 1 x Chisel Tip 2.4 mm x 10 mm
    • 1 x Chisel Style Long Tip 5.2 mm x 12 mm
    • 1 x Conical Style Tip R0.2 mm x 12.7 mm
    View Data Sheet
    PDF
