Fixed and variable AC supply modules for on-bench power & testing

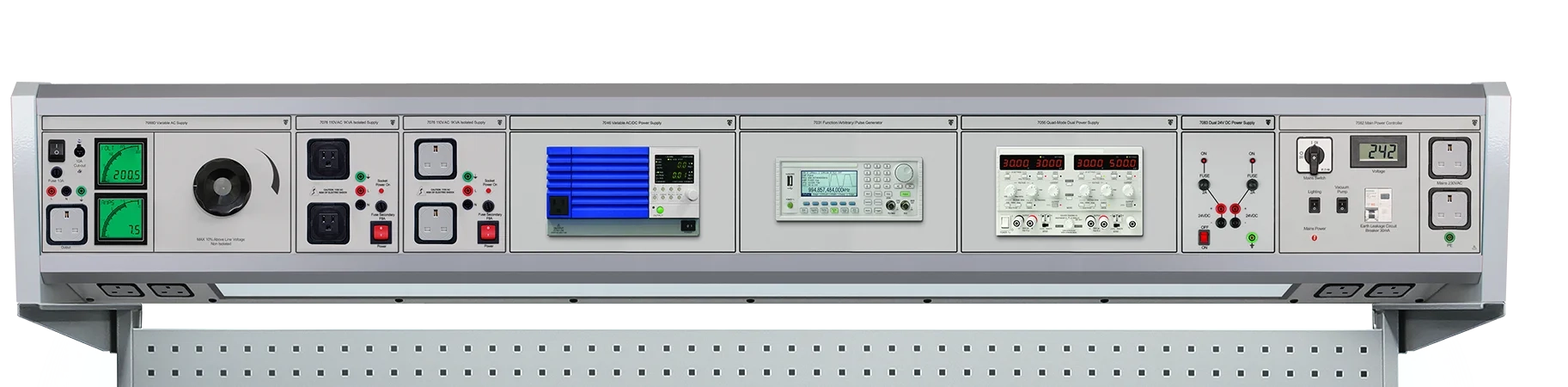

There are a selection of AC power supply modulesf for CalBenches. The 7082 features in every primary console as the mains controller for the system. It situates in the right end of the console and is a single-phase unit with 2 output sockets and digital meter that monitors the incoming line voltage.

The 7082 is used to turn the CalBench on/off and features the switch for the under console LED panel. A compact version without sockets (7082-HW) can be fitted when a console needs more module space. This is common for 7080-HD15 (1500 mm wide) and 7080-CNR Corner CalBenches.

The 7088D is a module that provides variable 50 Hz AC power up to 10 A. Output is dependant on mains line voltage, typically 265 V at 240 V or 121 V at 110 V input. Digital meters display the output V & I that is available from the front panel socket. Adjustment is via an industrial grade control knob.

The 7076 is a 110 V AC fixed supply module often fitted with a US type socket. It is suitable for use on 230 V CalBenches, to power 110 V devices and equipment. Each CalBench is custom-built so regional sockets are available for AC power modules and the four under console sockets.

  • AC Power Supply Modules

    7082 Mains Power Controller

    • Fitted as standard in every bench
    • Single phase mains power
    • 2 front panel sockets
    • Digital volt meter (0 to 300 V)
    • 16 A overload protection for bench
    • Various socket types available
    • PE socket for esd equipment
    View Data Sheet
    PDF
  • AC Power Supply Modules

    7082-HW Mains Power Controller

    • Compact version of 7082 module
    • Suitable for 1500 mm wide consoles
    • Fitted to corner consoles as standard
    • Single phase mains power
    • Digital volt meter (0 to 300 V)
    • 16 A overload protection for bench
    • PE socket for esd equipment
    View Data Sheet
    PDF
  • AC Power Supply Modules

    7088D Adjustable AC Power Supply

    • Variable ACV: 0-110% above input
    • 0 to 265V 50Hz, 10A at 240V input
    • 0 to 121V 50Hz, 10A at 110V input
    • Two digital displays for V & I
    • 4 digit resolution
    • Curved bar graph display
    • Various socket types available
    View Data Sheet
    PDF
  • AC Power Supply Modules

    7076 Fixed 110V AC Power Supply

    • Isolated 110 V AC 8A supply
    • 2 mains output sockets
    • Additional 4mm shrouded sockets
    • Separate grounding socket
    • Internal transformer rated at 1 kV
    • Overload protected
    • RCB protected via mains controller
    View Data Sheet
    PDF
  • AC Power Supply Modules

    7046-7047 Variable AC/DC Power Supplies

    • 7046: AC 500 VA, DC 400 W
    • 7047: AC 1000 VA, DC 800 W
    • 1 to 270 V AC output
    • Output ACI: 7046 = 5 A, 7047 = 10 A
    • 1.4 to ± 380 V DC output
    • Output DCI: 7046 = 4 A, 7047 = 8 A
    • Frequency 40 to 500 Hz
    View Data Sheet
    PDF
