Perforated Panel Fittings for CalBench

Perforated Back Panel Fittings

Quick-access storage and extras for the CalBench perforated panel

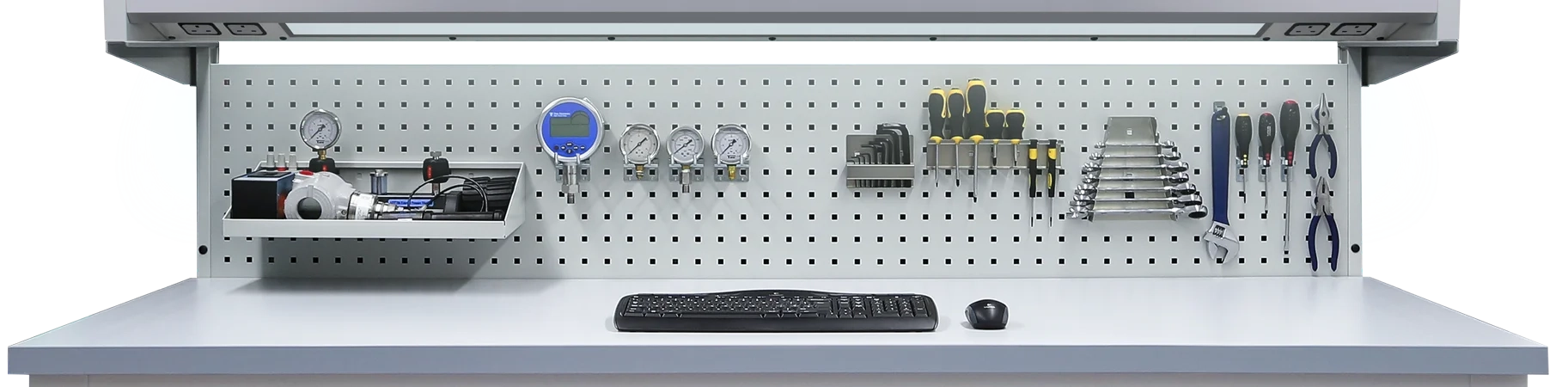

The CalBench perforated panel situates below the primary console at the rear of the worktop, and is utilised in various ways for storage and positioning of parts, tools and peripherals.

Hook kit sets feature a selection of holders that fix to the panel for placing tools and extras. Shelves and trays provide convenient storage area for equipment and devices. They are also commonly used for placing items like label printers and bar code readers.

Parts bins that hook on steel perfo mounted strips are available for components and fittings storage. A range of transparent tilt boxes are suitable for storage and access to small parts.

An angled A3 size document holder is ideal for placing user manuals of devices under test, or guides for students in training facilities. Monitor arms mount to the panel and connect to the HDMI port (under console) to extend the PC control centre module display.

  • Perforated Back Panel Fittings

    7125-7137 Perfo Tool Hooks/Holder Sets

    • 7125: 20 piece tool hook/holder kit
    • 7137: 40 piece tool hook/holder kit
    • Single hooks, double hooks & spring clips
    • Spanner holder & screwdriver holder
    • Allen key holder, drill holder & saw holder
    • Supplied with fitting tool
    • Quick fix perfo lock for easy re-positioning
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

    7139-7140 Perfo Shelves

    • Steel shelves for tools, fittings & extras
    • 7139: W 450 x D 250 x H 130 mm
    • 7140: W 900 x D 250 x H 130 mm
    • RAL 7035 light grey colour
    • Quick fix perfo lock for easy re-positioning
    • Suitable for placing handheld test tools
    • Situate EasyCal label printer, barcode reader
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

    P146-P147 Perfo Storage Trays

    • Compact storage trays for components
    • P146: W 225 x D 175 x H 65 mm
    • P147: W 440 x D 175 x H 65 mm
    • Made from reinforced steel
    • RAL 7035 light grey colour
    • Quick fix perfo lock for easy re-positioning
    • Suitable for pressure fittings and adaptors
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

    7141-7142 Perfo Storage Bin Strips

    • 7141: W 450 mm with 4 x 1 L red bins
    • 7142: W 900 mm with 6 x 3.5 L red bins
    • Bin strip RAL7035 light grey colour
    • Quick fix perfo lock for easy re-positioning
    • Quality rigid bins, high density polyethylene
    • Label supplied with each bin
    • Additional bins sizes available upon request
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

    P149-P153 Perfo Transparent Tilt Boxes

    • For storing parts, components, small items
    • All units 600 mm wide, rigid plastic
    • P149: 9 compartments (D 68 x H 78 mm)
    • P150: 6 compartments (D 96 x H 112 mm)
    • P151: 5 compartments (D 142 x H 168 mm)
    • P152: 4 compartments (D 178 x H 206 mm)
    • P153: 3 compartments (D 210 x H 242 mm)
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

    7143 A3 Document Holder

    • A3 angled document holder
    • W 450 x H 360 mm
    • Ergonomically position user manuals
    • Ideal for training CalBenches
    • Made from reinforced steel
    • RAL 7035 light grey colour
    • Quick fix perfo lock for easy re-positioning
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

    P148 A4 Document Holder

    • Portrait A4 document holder
    • Holds certificates, signs & documents
    • Made from reinforced steel
    • RAL 7035 light grey colour
    • Slim 2.5 cm profile, non-intrusive to worktop
    • Quick fix perfo lock for easy re-positioning
    • A4 landscape version available
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

    7133 Perfo Magnet Set

    • 10 off 35 mm round magnets
    • 10 off 12 mm hook type magnets
    • Used for quick fixing documents
    • Hook magnets for small tools & keys
    • Neodymium type, triple plated
    • Strong magnetic performance
    • Also for use with magnetic whiteboards
    View Data Sheet
    PDF
  • Perforated Back Panel Fittings

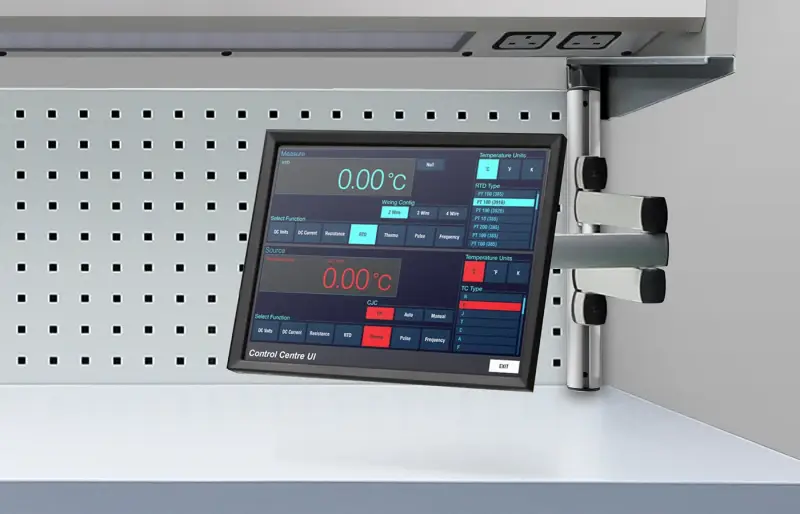

    TL100-TL103 Monitor Arms

    • 4 mounting arms, different extension lengths
    • TL100 (XS): 105 mm / TL103 (SL): 450 mm
    • TL101 (M): 505 mm / TL102 (XL): 705 mm
    • Quick fix feature for monitor mounting
    • Connect display to control centre module
    • Sturdy aluminum/ABS construction
    • Swivel head with 105° horizontal range
    View Data Sheet
    PDF
