CalBench Pressure Pumps

Pressure Pumps and Regulators

Line pressure compressors & regulators, hand pumps for testing work

A range of pressure equipment for use with CalBench. Electric pumps and compressors are used to provide line pressure to controller or regulated modules. The 7149 pump with housing and connectivity option, is for vacuum. As part of the utilities assessment we consult on line pressure to ensure the site can adequately supplement the CalBench. If not available we can include the solutions in our scope of supply.

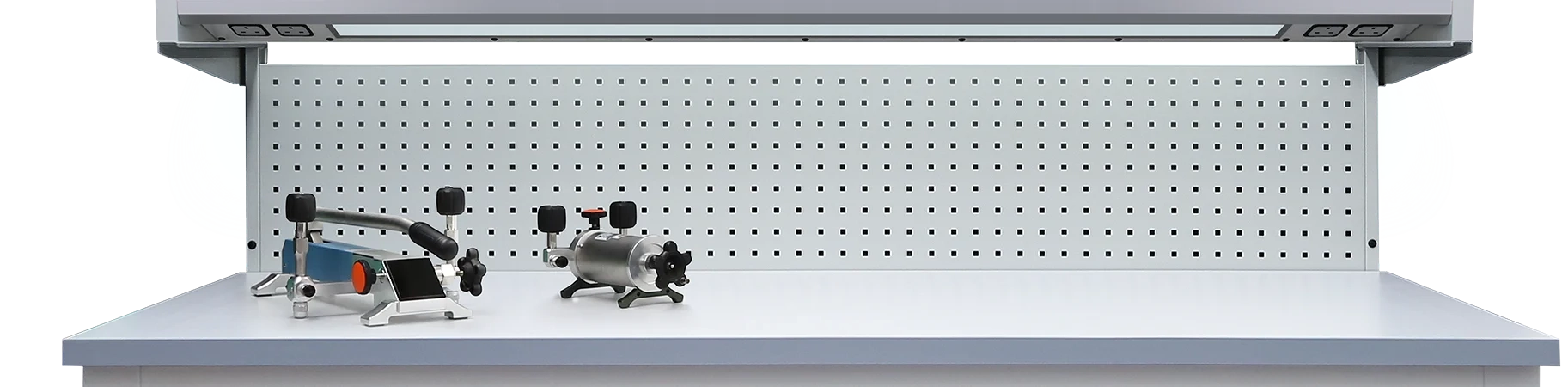

Manually operated pumps are used  to input pressure to a measuring module and a unit under test. A selection of pneumatic and hydraulic pumps are available for different range and application requirements. Benchtop pumps provide a practical solution with dual ports for quick and simple module and UUT connection. They also offer fine control making them suitable for applications like differential pressure calibration.

  • Pressure Pumps and Regulators

    7165 Compact High Pressure Compressor

    • Compact electric pressure pump
    • For use with 8030B controller module
    • Models for 17, 35, 50 or 70 bar
    • Oil free system, provides clean dry air
    • Front panel controls and display
    • Accuracy 1 % FS
    • Supplied configured for CalBench ordered
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7149 Electrical Vacuum Pump

    • Vacuum pump for use with CalBench
    • Max vacuum: 950 mbar (28 in Hg)
    • Free-air capacity: 0.85 cfm (24.0 L/min)
    • Shaded-pole fan-cooled motor
    • Thermal overload switch
    • Dual pump heads connected in series
    • Housing and connectivity option
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    XREG Pressure Regulator Kit

    • Piston sensed pressure reducing regulator
    • Suitable for use with gas or N2 cylinders
    • Control line pressure to CalBench systems
    • Regulation up to 210 bar (3045 psi)
    • Industrial grade for arduous use
    • Smooth adjustment with bronze bearing
    • Inlet and outlet gauges supplied, 250 bar
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    LPB Line Pressure Benches

    • Pneumatic line pressure systems
    • Supplied configured for use with CalBench
    • 1.5 m heavy duty work bench
    • Secure cylinder housing cabinet
    • Manifold and valves section
    • Perspex shielding over cylinders/manifolds
    • High pressure compressor option
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7190 Micro-Pressure Pneumatic Pump

    • -0.4bar vacuum to 0.4bar (6psi)
    • Double output manifold
    • Resolution: 0.0001mbar (0.01Pa)
    • Screw press for fine adjustment
    • Bellows minimise leakage
    • Isothermal chamber for stability
    • Compact, lightweight design
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7191 Low Pressure Pneumatic Pump

    • -0.95bar vacuum to 4bar (60psi)
    • Double output manifold
    • Resolution: 0.0001mbar (0.01Pa)
    • Screw press for fine adjustment
    • Bellows minimise leakage
    • Isothermal chamber for stability
    • Compact, lightweight design
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7193 Pneumatic Pressure Pump

    • 0.95 bar vacuum to 40 bar (600 psi)
    • Pneumatic
    • Double output manifold
    • Ideal for use as gauge comparator
    • High pressure resolution (0.1 mbar)
    • Screw press for fine adjustment
    • 7193A (70bar) & 7193B (100bar) versions
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7194A High Pressure Pneumatic Pump

    • 0.95 bar vacuum to 200 bar (3000 psi)
    • Double output manifold
    • High pressure resolution
    • High pressure stability
    • Easy to use pressure lever/handle
    • Free from humidity and dirt
    • 140 bar version available - Model 7194
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7195 Hydraulic Pressure Pump

    • Vacuum to 700bar (10,000psi)
    • Double output manifold
    • High pressure resolution
    • High pressure stability
    • Smooth pressure generation
    • Oil or deionized water
    • 1000 bar version available - Model 7195A
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7090 Pneumatic Calibration Pump

    • Pressure to 40 bar (600 psi)
    • Vacuum to -950 mbar
    • Oversized check valve
    • Contoured cushioned handles
    • Protective caging for vent valve
    • Hose, fittings, & carry case supplied
    • Optional digital gauges
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7095 Hydraulic Calibration Pump

    • 0 to 700 bar (10,000 psi)
    • Priming feature for fast air purge
    • Oversized check valve
    • Contoured cushioned handles
    • Built-in pressure relief valve
    • Hose, fittings, & carry case supplied
    • Optional digital gauges
    View Data Sheet
    PDF
  • Pressure Pumps and Regulators

    7117-7118 Portable Pressure Pumps

    • 7118: Pneumatic 0 to 7 bar (100 psi)
    • 7117: Vacuum 0 to 950 mbar (28 inHg)
    • Non-oil based lubricant on moving parts
    • Dual o-rings on pistons ensure no leakage
    • Compact pocket sized pumps
    • H 220 x W 40 mm, 0.70 kg
    • Digital pressure gauges available
    View Data Sheet
    PDF
