Dry Block Calibrators

Dry Block Calibrators and Extras

EasyCal compatible temperature calibrators for CalBench

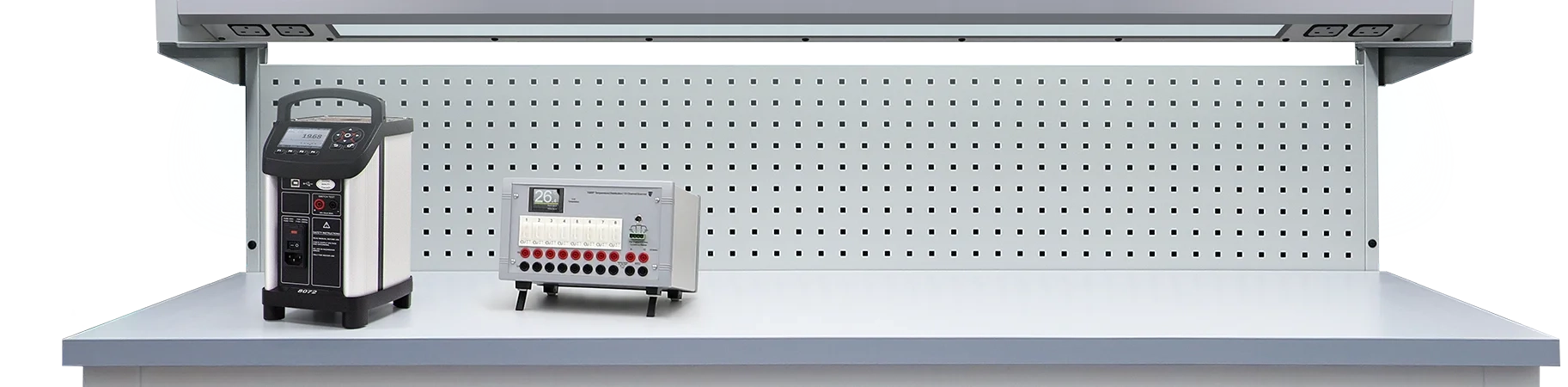

Temperature calibration is a common application performed on CalBenches. We have a selection of products that are used in conjunction with modules to test and verify temperature devices. We work with customers to understand their requirements based on the instrumentation at site and process ranges. We then specify the modules and external models for optimal coverage. The combination of products can provide an automated solution to streamline calibration work and allow users to multi-task at the bench.

Dry block calibrators are instruments that provide a temperature source when calibrating instrumentation such as RTDs and thermocouples. We offer models for different temperature ranges and performance requirements. Each model is EasyCal software compatible, allowing temperatures to be controlled and measured automatically. To further enhance the setup, we have reference Pt100 sensors and multi-channel signal scanners. For testing IR thermometers we have the 7074 black body calibrator.

  • Dry Block Calibrators and Extras

    8070-71-72 Dry Block Calibrators

    • 8070: -25 to 155 °C / -13 to 311 °F
    • 8071: 28 to 350 °C / 82 to 662 °F
    • 8072: 28 to 660 °C / 82 to 1220 °F
    • Calibrate sensors, RTDs, thermocouples
    • Simple operation & intuitive display
    • Supplied with multi-hole insert
    • EasyCal software compatible
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    8073 Dry Block Calibrator

    • 100 to 1205 °C (212 to 2200 °F)
    • High range with fast heating & cooling
    • Accuracy ± 2.0 °C (3.6 °F)
    • Stability ± 0.1 °C (0.18 °F)
    • Simple operation & intuitive display
    • Supplied with multi-hole insert
    • EasyCal software compatible
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    7861-7871 Dry Block Calibrators

    • 7861: -30 to 155 °C (-22 to 311 °F)
    • 7871: -45 to 155 °C (-49 to 311 °F)
    • Accuracy ± 0.10 °C (0.18 °F)
    • Stability ± 0.005 °C (0.009 °F)
    • Stability indicator, auto stepping features
    • Supplied with multi-hole insert
    • EasyCal software compatible
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    7870-7872 Dry Block Calibrators

    • 7870: -90 to 125 °C (-130 to 257 °F)
    • 7872: 33 to 660 °C (91 to 1220 °F)
    • Accuracy ± 0.30 °C (0.54 °F)
    • Stability ± 0.04 °C (0.072 °F)
    • Stability indicator, auto stepping features
    • Supplied with multi-hole insert
    • EasyCal software compatible
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    7880-7882 Dry Block Calibrators

    • 7880: -100 to 155 °C (-148 to 311 °F)
    • 7882: 33 to 700 °C (91 to 1292 °F)
    • Accuracy ± 0.30 °C (0.54 °F)
    • Stability ± 0.03 °C (0.054 °F)
    • Stability indicator, auto stepping features
    • Supplied with multi-hole insert
    • EasyCal software compatible
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    7074 Infrared Temperature Calibrator

    • For calibrating IR thermometers
    • 28 to 400 °C (82 to 752 °F)
    • Accuracy ± 0.4 % rdg ± 1 °C incl. emissivity
    • 36 mm black body target
    • Simple operation & intuitive display
    • Programmable auto stepping
    • EasyCal software compatible
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    7085P Temperature Scanner

    • Benchtop version of 7085A module
    • Multi-signal scanner to common output
    • 8 thermocouple inputs & 1 RTD reference
    • Records min/max ambient temperatures
    • Cold junction temperature display
    • For use with 8060+/7051+/5065B, EasyCal
    • Used with dry block calibrators
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    8085 Advanced Signal Scanner

    • 8 channel scanner for use on CalBench
    • Calibrate multiple 2-, 3- , 4-wire RTDs, TCs
    • Reference sensor input
    • Internal measurement capabilities
    • Measure up to 10 V / 4 kΩ / 24 mA
    • Use with control centre modules
    • Used with dry block calibrators
    View Data Sheet
    PDF
  • Dry Block Calibrators and Extras

    TERS Reference Pt100 Sensors

    • Precision Pt100 sensors
    • 250 mm and 350 mm lengths
    • TERS400: -40 to 400 °C (-58 to 752 °F)
    • TERS650: -150 to 650 °C (-238 to 1207 °F)
    • 4 mm diameter
    • For use with dry block calibrators
    • Fast response times
    View Data Sheet
    PDF
