7007 Loop Signal Indicator

7007 Loop Signal Indicator
  • 7007 Loop signal indicator

Features

  • 4 - 20mA, 0 -10V, 0 - 50V ranges
  • LCD 4 digit display, mA, V, % of rng
  • Accuracy 0.05%
  • RxSim, TxTest, or 50mA/50V modes
  • Internal loop supply, 25mA max
  • Battery powered 9V PP3
  • Supplied with carry case

7007 Images

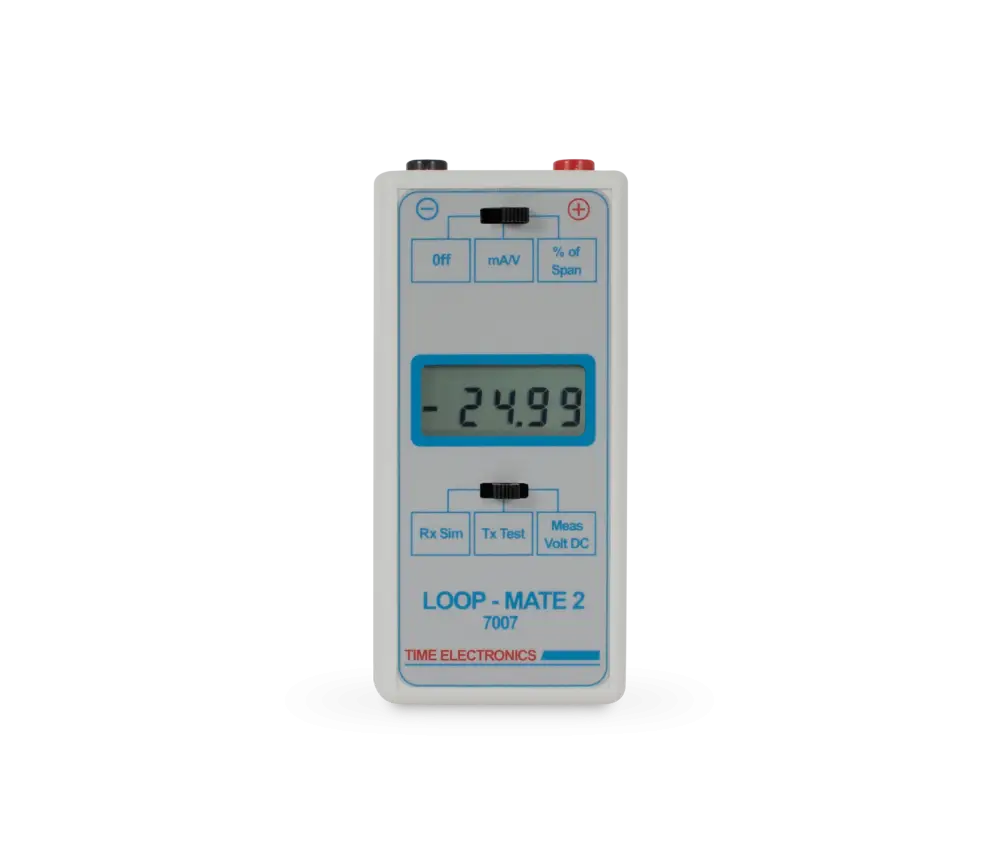

  • The 7007 LoopMate2 is a dedicated loop signal indicator (RxSim); with an in-built 24V loop drive supply (TxTest). The operator can select the loop type, and also the type of units, either direct (mA) or % of span display. The loop signal is shown on an easy to read LCD display to an accuracy of 0.05% either in mA, V, or % of span.

    It is an ideal instrument for service and maintenance engineers. It combines low cost and simple operation while providing more than enough accuracy for most applications. Used in conjunction with the 7006 LoopMate1 they provide full process loop testing capabilities, facilitating quick location of faults, testing and recalibration.

    In addition to TxTest (transmitter test) and RxSim (receiver simulation) the 7007 can be used to measure dc voltage in the process loop up to 50V.
    The 7007 is powered by the universally available PP3 type battery. Rechargeable batteries can be used if required.  It comes complete with carrying pouch and user manual.

  • Technical Specifications

    Range 4 - 20mA, 0 - 10V, 0 - 50V
    Display LCD 4 digits, mA, V, or % of span
    Accuracy 0.05%
    Modes RxSim, TxTest, or 50mA/50V measure
    Loop Supply Internal, 25mA max


    General Specifications

    Power PP3 battery, typical life 40 hours
    Dimensions H140 x W65 x D30mm
    Weight 200g
    Supplied With Carry Case and user manual
    Optional Extras Calibration certificates traceable to NPL and UKAS
    Country of Origin UK
  • Models

    7007

    Loop-Mate 2: Loop Signal Indicator

    7006 Loop-Mate 1: Loop Simulator/Source
    Options

    C145

    Factory Calibration Certificate (NPL traceable) – Code applies to 7006 & 7007

    C144 UKAS Calibration Certificate (ISO 17025) – Code applies to 7006 & 7007
  • PDF Downloads
    File Name File Size Language

    7006 / 7007 Data Sheet

    240kB

    EN
