7006 Loop Simulator & Source

7006 Loop Simulator & Source
  • 7006 Loops simulator & source

Features

  • 4 - 20mA or 0 - 10V loops
  • 7 calibration set-points
  • Accuracy 0.1%
  • TxSim and RxTest modes
  • Autostep output - adjustable rate
  • Battery powered PP3
  • Internal loop drive supply

7006 Images

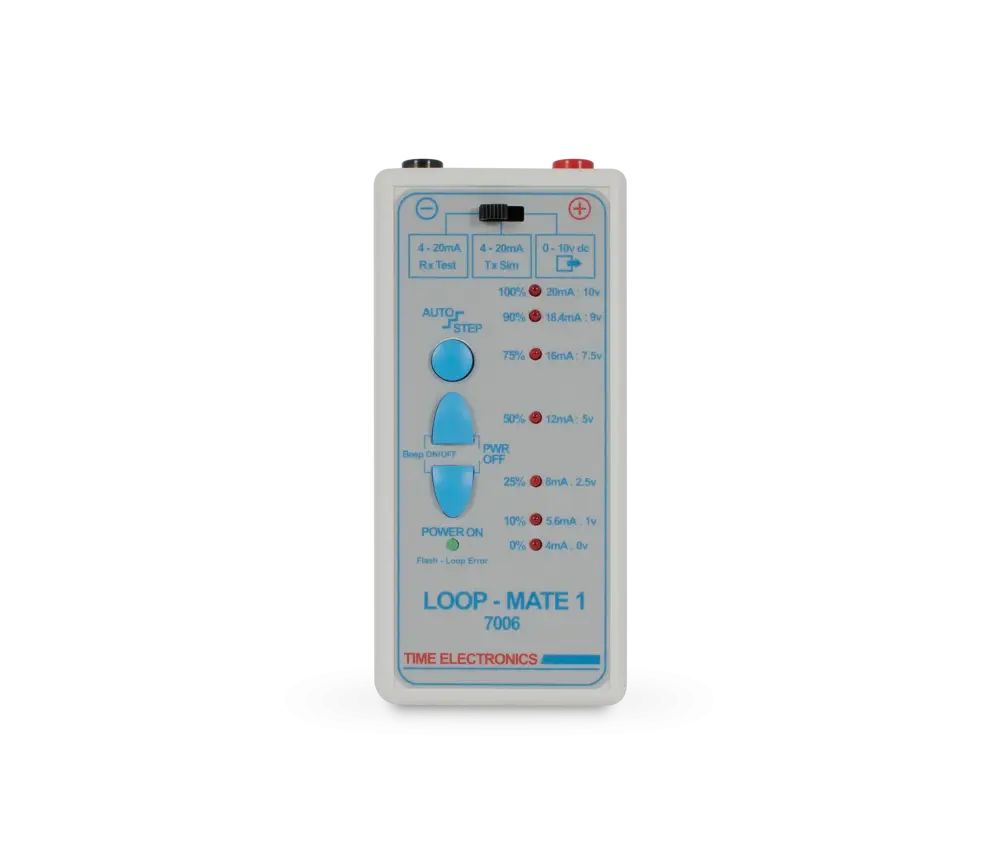

  • The 7006 is a single function low-cost pocket sized simulator, designed for test and calibration of process loops. Simplicity of operation is the key feature - no keypads or complicated selections. Engineers will be able to pick up the 7006 and get to work immediately. Just select 4 - 20mA or 10V loop, and TxSim, RxTest, or 0 to 10V DC simulation mode. Internal loop drive supply for powering the loop is also available if required.

    As a loop simulator it acts as a source to provide the loop signals, 4 - 20mA or 0 - 10V. No complicated selection of the output, just operate up/down buttons to increase or decrease the signal. There are 7 set-points, 0%, 10%, 25%, 50%, 75%, 90%, 100%. Each is indicated on a high brightness LED and an audible beep sounds as you step between them. Auto-stepping mode (adjustable rate) allows the 7006 to be left connected stepping up and down.

    For loop signal checking Time Electronics offer the 7007 Loop-Mate as an accompanying instrument. An engineer can then move to another location to check that the signal is arriving correctly and is within specification. The 7007 is a dedicated loop signal indicator, just as easy to operate. Once again select the loop type, 4 - 20mA, or 0 - 10V, and whether you want the display in direct units, or % of span. The LCD display shows the signal to an accuracy of 0.05% either in mA, V, or % of span.

    Both units are powered by a single standard PP3 battery that gives up to 40 hours continuous use.

  • Technical Specifications

    7006 Loop-Mate 1
    Range 4 - 20mA or 0 - 10V
    Set-Points 0, 10, 25, 50, 75, 90, 100% of span
    Accuracy 0.1%

    Modes

    TxSim or RxTest

    Loop Supply Internal, 25mA max
    Auto-Step Up/Down/Up, 0.5, 1, 2, 4, or 8sec/step
    7007 Loop-Mate 2
    Range 4 - 20mA, 0 - 10V, 0 - 50V
    Display LCD 4 digits, mA, V, or % of span
    Accuracy 0.05%
    Modes RxSim, TxTest, or 50mA/50V measure
    Loop supply Internal, 25mA max


    General Specifications

    Power PP3 battery, typical life 40 hours
    Dimensions H140 x W65 x D30mm
    Weight 7006 = 180g. 7007 = 200g
    Supplied With Carry Case and user manual
    Optional Extras Calibration certificates traceable to NPL and UKAS
    Country of Origin UK
  • Models

    7006

    Loop-Mate 1: Loop Simulator/Source

    7007

    Loop-Mate 2: Loop Signal Indicator

    Options

    C145

    Factory Calibration Certificate (NPL traceable) – Code applies to 7006 & 7007

    C144

    UKAS Calibration Certificate (ISO 17025) – Code applies to 7006 & 7007
